SKU: NKX15-MB

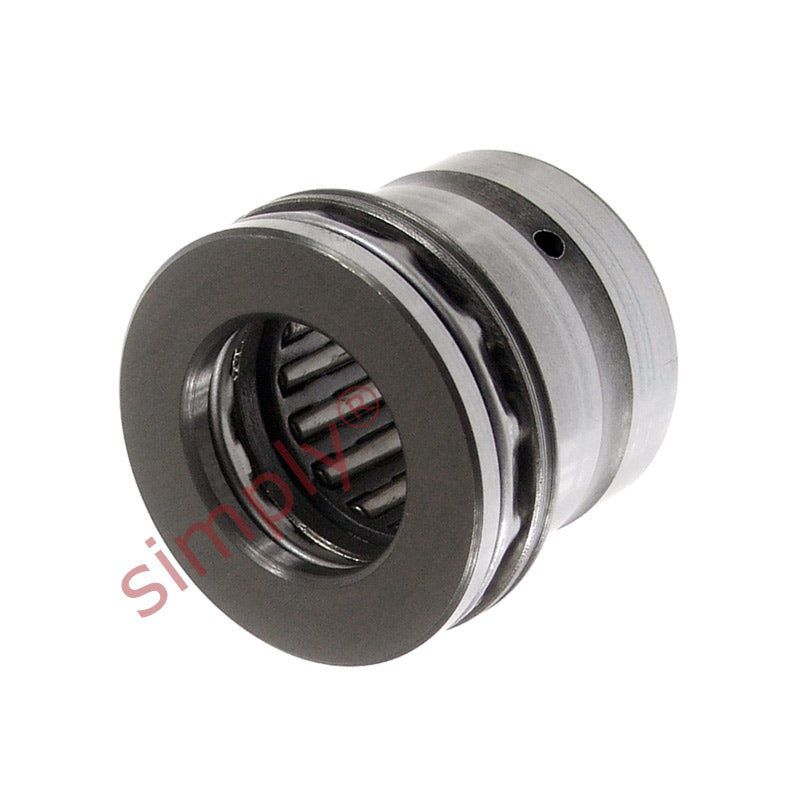

Major Brand NKX15 Needle Roller Thrust Ball Bearing Without Cover 15x24x23mm
- Regular price
- €56.16 ex VAT
- Sale price
- €56,16
- Regular price
-
Not in stock
Quantity Price Breaks
10
€49.98
19
€47.17
29
€46.61
39
€46.05
49
€45.49
74
€44.93
99
€42.12
199
€41.56
249
€41.00
499
€40.44
999
€39.31
SKU:
NKX15-MB
Major Brand NKX15 Needle Roller Thrust Ball Bearing Without Cover 15x24x23mm
- Regular price
- €56.16 ex VAT
- Sale price
- €56,16
- Regular price
-
Description
Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |

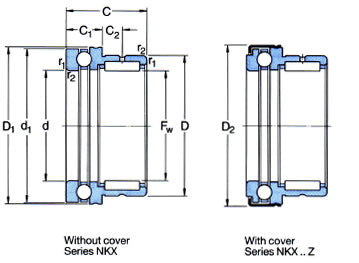

Technical
| Fw | = | 15mm |
| D | = | 24mm |
| C | = | 23mm |
| Radial dynamic load | = | 11200 N |
| Radial static load | = | 14000 N |
| Axial dynamic load | = | 10600 N |
| Axial static load | = | 18300 N |
| Fatigue load limit radial Pu | = | 1660 N |
| Fatigue load limit axial Pu | = | 670 N |
| Min load factor | = | 1.7 |
| Speed in grease | = | 6300 rpm |
| Speed in oil | = | 8500 rpm |
| C1 | = | 9mm |
| C2 | = | 6.5mm |
| d | = | 15 |
