SKU: NKX50Z-MB

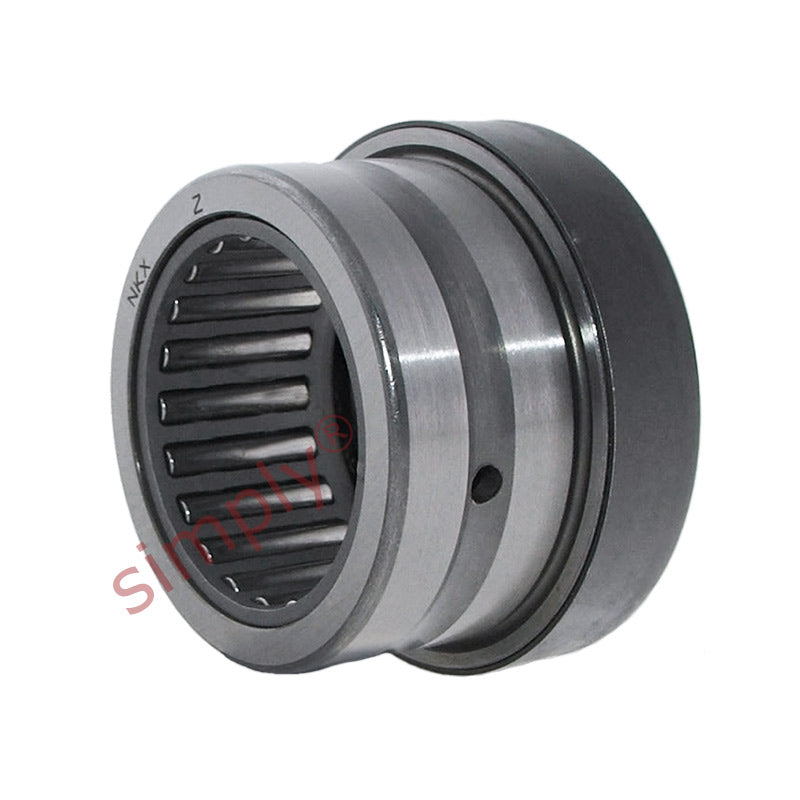

Major Brand NKX50Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 50x62x35mm
- Regular price
- €122.57 ex VAT
- Sale price
- €122,57
- Regular price
-
Not in stock
Quantity Price Breaks
10
€109.09
19
€102.96
29
€101.73
39
€100.51
49
€99.28
74
€98.06
99
€91.93
199
€90.70
249
€89.48
499
€88.25
999
€85.80
SKU:
NKX50Z-MB
Major Brand NKX50Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 50x62x35mm
- Regular price
- €122.57 ex VAT
- Sale price
- €122,57
- Regular price
-
Description
Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
Technical
| Fw | = | 50mm |
| D | = | 62mm |
| C | = | 35mm |
| Radial dynamic load | = | 38000 N |
| Radial static load | = | 80000 N |
| Axial dynamic load | = | 28600 N |
| Axial static load | = | 81500 N |
| Fatigue load limit radial Pu | = | 9650 N |
| Fatigue load limit axial Pu | = | 3050 N |
| Min load factor | = | 34 |
| Speed in grease | = | 3200 rpm |
| Speed in oil | = | 4300 rpm |
| C1 | = | 14mm |
| C2 | = | 10mm |
| d | = | 50 |
