SKU: NKXR15-MB

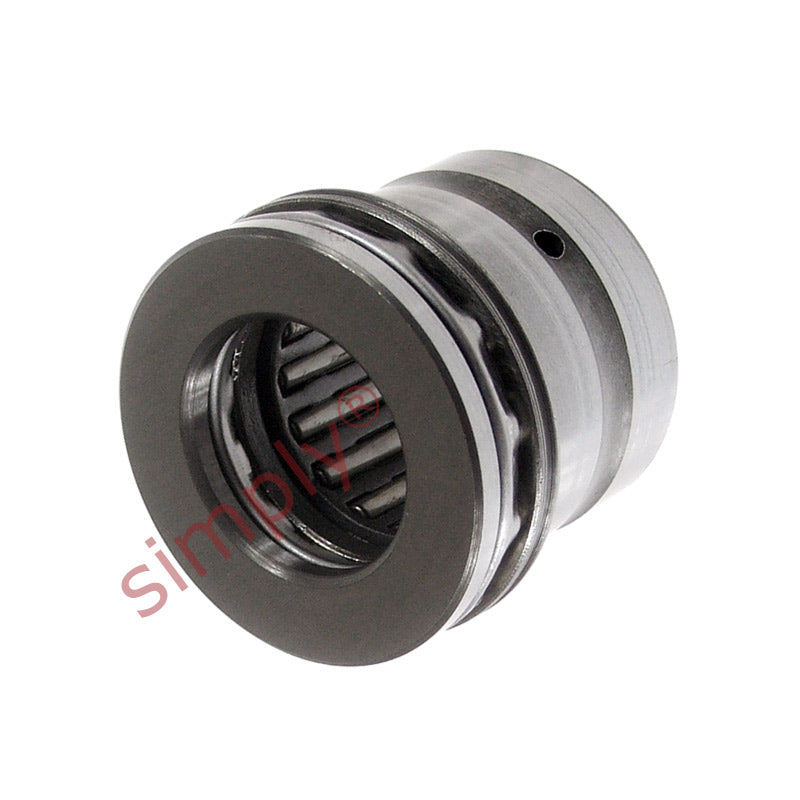

Major Brand NKXR15 Needle Roller Thrust Bearing without Cover 15x24x23mm
- Regular price
- €62.32 ex VAT
- Sale price
- €62,32
- Regular price
-
Not in stock
Quantity Price Breaks
10
€55.46
19
€52.35
29
€51.73
39
€51.10
49
€50.48
74
€49.86
99
€46.74
199
€46.12
249
€45.49
499
€44.87
999
€43.62
SKU:
NKXR15-MB
Major Brand NKXR15 Needle Roller Thrust Bearing without Cover 15x24x23mm
- Regular price
- €62.32 ex VAT
- Sale price
- €62,32
- Regular price
-
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
Technical
| Fw | = | 15mm |
| D | = | 24mm |
| C | = | 23mm |
| Dynamic load | = | 11200 N |
| Static load | = | 14000 N |
| Axial dynamic load | = | 11200 N |
| Axial static load | = | 27000 N |
| Fatigue load limit radial Pu | = | 1660 N |
| Fatigue load limit axial Pu | = | 2450 N |
| Min load factor A | = | 0.058 |
| Speed in grease | = | 3200 rpm |
| Speed in oil | = | 4300 rpm |
| C1 | = | 9mm |
| C2 | = | 6.5mm |
| d | = | 15 |
