SKU: NKXR17-MB

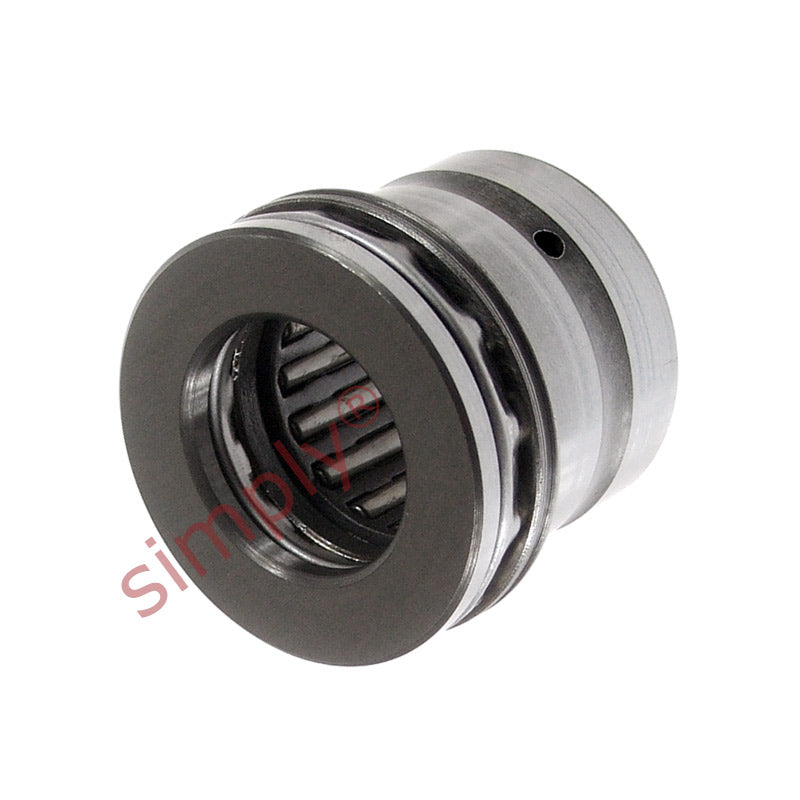

Major Brand NKXR17 Needle Roller Thrust Bearing without Cover 17x26x25mm
- Regular price
- €83.70 ex VAT
- Sale price
- €83,70
- Regular price
-
Not in stock
Quantity Price Breaks
10
€74.49
19
€70.31
29
€69.47
39
€68.63
49
€67.80
74
€66.96
99
€62.78
199
€61.94
249
€61.10
499
€60.26
999
€58.59
SKU:
NKXR17-MB
Major Brand NKXR17 Needle Roller Thrust Bearing without Cover 17x26x25mm
- Regular price
- €83.70 ex VAT
- Sale price
- €83,70
- Regular price
-
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
Technical
| Fw | = | 17mm |
| D | = | 26mm |
| C | = | 25mm |
| Dynamic load | = | 12300 N |
| Static load | = | 16600 N |
| Axial dynamic load | = | 12200 N |
| Axial static load | = | 31500 N |
| Fatigue load limit radial Pu | = | 1960 N |
| Fatigue load limit axial Pu | = | 2850 N |
| Min load factor A | = | 0.079 |
| Speed in grease | = | 3200 rpm |
| Speed in oil | = | 4300 rpm |
| C1 | = | 9mm |
| C2 | = | 8mm |
| d | = | 17 |
