SKU: NKXR17Z-MB

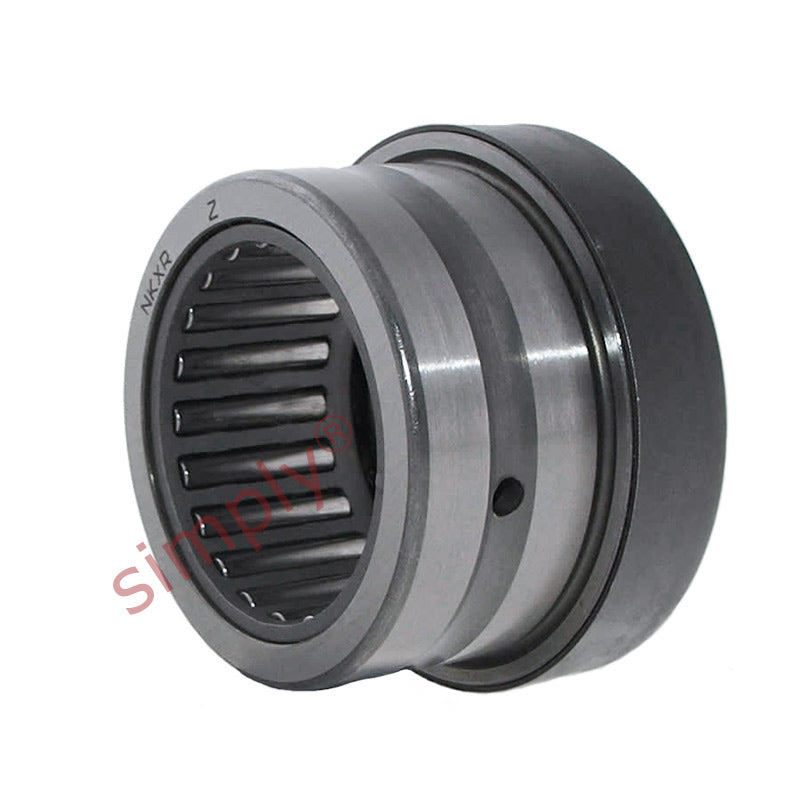

Major Brand NKXR17Z Needle Roller Thrust Bearing without Cover 17x26x25mm
- Regular price
- €89.10 ex VAT
- Sale price
- €89,10
- Regular price
-
Not in stock
Quantity Price Breaks
10
€79.30
19
€74.84
29
€73.95
39
€73.06
49
€72.17
74
€71.28
99
€66.83
199
€65.93
249
€65.04
499
€64.15
999
€62.37
SKU:
NKXR17Z-MB
Major Brand NKXR17Z Needle Roller Thrust Bearing without Cover 17x26x25mm
- Regular price
- €89.10 ex VAT
- Sale price
- €89,10
- Regular price
-
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |

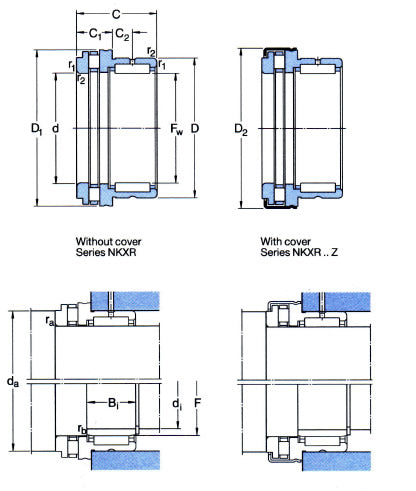

Technical
| Fw | = | 17mm |
| D | = | 26mm |
| C | = | 25mm |
| Dynamic load | = | 12300 N |
| Static load | = | 16600 N |
| Axial dynamic load | = | 12200 N |
| Axial static load | = | 31500 N |
| Fatigue load limit radial Pu | = | 1960 N |
| Fatigue load limit axial Pu | = | 2850 N |
| Min load factor A | = | 0.079 |
| Speed in grease | = | 3200 rpm |
| Speed in oil | = | 4300 rpm |
| C1 | = | 9mm |
| C2 | = | 8mm |
| d | = | 17 |
