SKU: NKXR20-MB

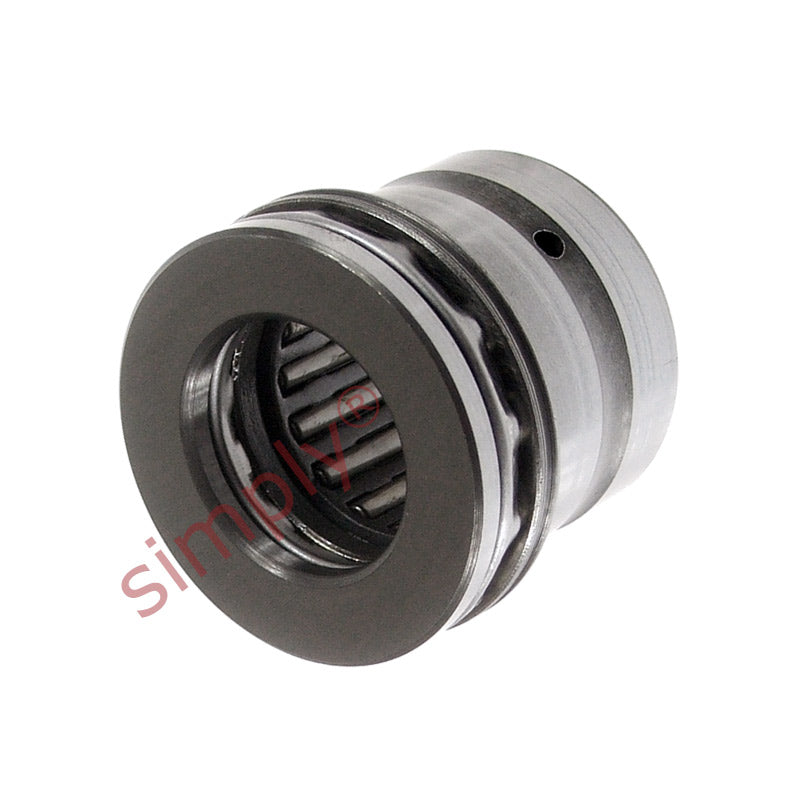

Major Brand NKXR20 Needle Roller Thrust Bearing without Cover 20x30x30mm
- Regular price
- €104.90 ex VAT
- Sale price
- €104,90
- Regular price
-
Not in stock
Quantity Price Breaks
10
€93.36
19
€88.12
29
€87.07
39
€86.02
49
€84.97
74
€83.92
99
€78.68
199
€77.63
249
€76.58
499
€75.53
999
€73.43
SKU:
NKXR20-MB
Major Brand NKXR20 Needle Roller Thrust Bearing without Cover 20x30x30mm
- Regular price
- €104.90 ex VAT
- Sale price
- €104,90
- Regular price
-
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
Technical
| Fw | = | 20mm |
| D | = | 30mm |
| C | = | 30mm |
| Dynamic load | = | 16800 N |
| Static load | = | 26000 N |
| Axial dynamic load | = | 18600 N |
| Axial static load | = | 48000 N |
| Fatigue load limit radial Pu | = | 3050 N |
| Fatigue load limit axial Pu | = | 4650 N |
| Min load factor A | = | 0.18 |
| Speed in grease | = | 2800 rpm |
| Speed in oil | = | 3800 rpm |
| C1 | = | 10mm |
| C2 | = | 10.5mm |
| d | = | 20 |
