SKU: NKXR20Z-MB

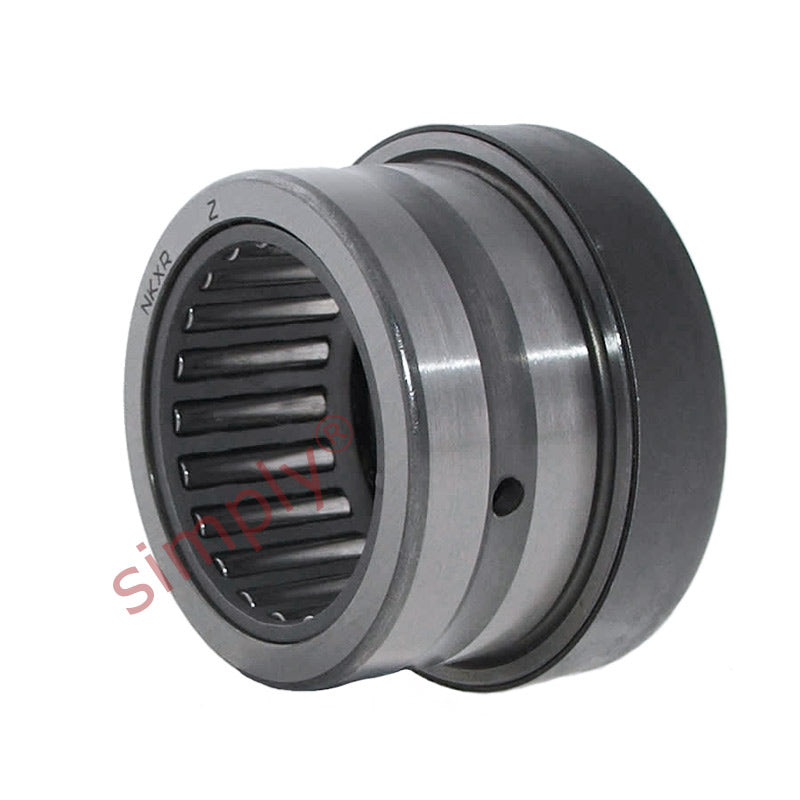

Major Brand NKXR20Z Needle Roller Thrust Bearing without Cover 20x30x30mm
- Regular price
- €78.29 ex VAT
- Sale price
- €78,29
- Regular price
-
In stock
Quantity Price Breaks
10
€69.68
19
€65.76
29
€64.98
39
€64.20
49
€63.41
74
€62.63
99
€58.72
199
€57.93
249
€57.15
499
€56.37
999
€54.80
SKU:
NKXR20Z-MB
Major Brand NKXR20Z Needle Roller Thrust Bearing without Cover 20x30x30mm
- Regular price
- €78.29 ex VAT
- Sale price
- €78,29
- Regular price
-
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
Technical
| Fw | = | 20mm |
| D | = | 30mm |
| C | = | 30mm |
| Dynamic load | = | 16800 N |
| Static load | = | 26000 N |
| Axial dynamic load | = | 18600 N |
| Axial static load | = | 48000 N |
| Fatigue load limit radial Pu | = | 3050 N |
| Fatigue load limit axial Pu | = | 4650 N |
| Min load factor A | = | 0.18 |
| Speed in grease | = | 2800 rpm |
| Speed in oil | = | 3800 rpm |
| C1 | = | 10mm |
| C2 | = | 10.5mm |
| d | = | 20 |
