SKU: NKXR50Z-MB

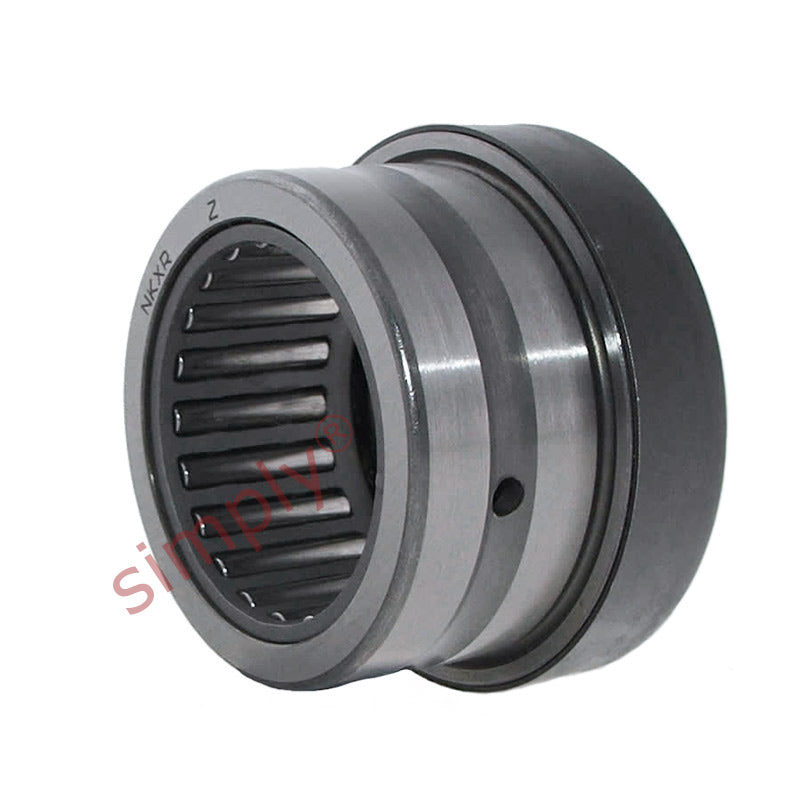

Major Brand NKXR50Z Needle Roller Thrust Bearing without Cover 50x62x35mm
- Regular price
- €245.14 ex VAT
- Sale price
- €245,14
- Regular price
-
Not in stock
Quantity Price Breaks
10
€218.17
19
€205.92
29
€203.47
39
€201.01
49
€198.56
74
€196.11
99
€183.86
199
€181.40
249
€178.95
499
€176.50
999
€171.60
SKU:
NKXR50Z-MB
Major Brand NKXR50Z Needle Roller Thrust Bearing without Cover 50x62x35mm
- Regular price
- €245.14 ex VAT
- Sale price
- €245,14
- Regular price
-
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
Technical
| Fw | = | 50mm |
| D | = | 62mm |
| C | = | 35mm |
| Dynamic load | = | 38000 N |
| Static load | = | 80000 N |
| Axial dynamic load | = | 47500 N |
| Axial static load | = | 166000 N |
| Fatigue load limit radial Pu | = | 9650 N |
| Fatigue load limit axial Pu | = | 16600 N |
| Min load factor A | = | 2.2 |
| Speed in grease | = | 1600 rpm |
| Speed in oil | = | 2200 rpm |
| C1 | = | 14mm |
| C2 | = | 10mm |
| d | = | 50 |
