SKU: NN3016 KTN/SP-SKF

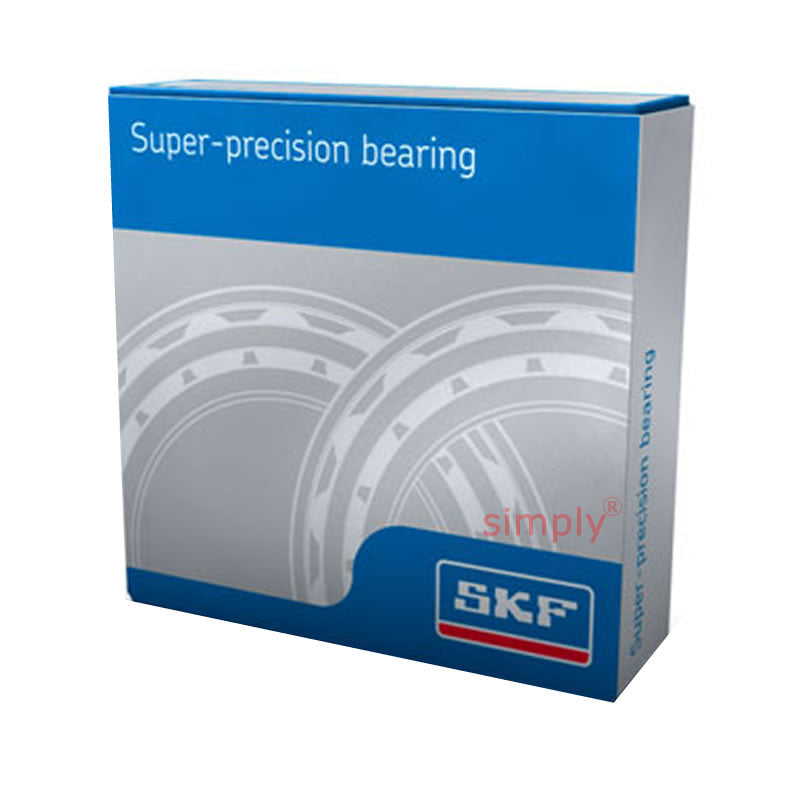

SKF NN3016KTNSP Super Precision Double Row Cylindrical Roller Spindle Bearing 80x125x34mm
- Regular price
- €304.38 ex VAT
- Sale price
- €304,38
- Regular price
-
Quantity Price Breaks
SKF NN3016KTNSP Super Precision Double Row Cylindrical Roller Spindle Bearing 80x125x34mm
- Regular price
- €304.38 ex VAT
- Sale price
- €304,38
- Regular price
-
Description
SKF Super Precision Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings SKF super-precision double row cylindrical roller bearings are manufactured as standard in the NN 30 and NNU 49 series. Both series are available with either a cylindrical or a 1:12 tapered bore (designation suffix K). In machine tool applications, cylindrical roller bearings with a tapered bore are preferred over bearings with a cylindrical bore, because the taper enables more accurate adjustment of clearance or preload during mounting.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low friction, low cross-sectional height.
Technical
| --- | = | Bearing Dimensions |
| d | = | 80mm |
| D | = | 125mm |
| B | = | 34mm |
| --- | = | Speeds and loads |
| Dynamic load C | = | 119 Kn |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 186 kn | |
| Fatigue load P< | = | sub> |
| u< | = | /sub> |
| = | 22 kN | |
| Speed in grease | = | 7000rpm |
| Speeed in oil | = | 8000rpm |
| Weight | = | 1.5kg |
| --- | = | Abutment and fillet dimensions |
| d< | = | sub> |
| 1< | = | /sub> |
| = | 97mm | |
| E | = | 113mm |
| r< | = | sub> |
| 1 and 2 min< | = | /sub> |
| = | 1.1mm | |
| r< | = | sub> |
| 3 and 4 min< | = | /sub> |
| = | 0.6mm | |
| S< | = | sup> |
| 2< | = | /sup> |
| = | 2mm | |
| d< | = | sub> |
| a< | = | /sub> |
| min | = | 86.5mm |
| D< | = | sub> |
| a min< | = | /sub> |
| = | 114mm | |
| D< | = | sub> |
| a max< | = | /sub> |
| = | 118.5mm | |
| d< | = | sub> |
| n< | = | /sub> |
| = | 1mm | |
| d< | = | sub> |
| n< | = | /sub> |
| = | 111.4mm | |
| Reference grease quantity | = | 8.3 grams |
| = | N/A |
