SKU: NNU4926-S-M-SP-FAG
FAG NNU4926SMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 130x180x50mm
- Regular price
- €2.007.19 ex VAT
- Sale price
- €2.007,19
- Regular price
-
Quantity Price Breaks
FAG NNU4926SMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 130x180x50mm
- Regular price
- €2.007.19 ex VAT
- Sale price
- €2.007,19
- Regular price
-
Description
FAG Double Row Super Precision Cylindrical Roller Bearings: FAG super precision cylindrical roller bearings comprise solid outer rings, solid inner rings and cylindrical roller and cage assemblies with cages made from polyamide, brass or PEEK (polyether ether ketone). The outer ring is removable and can thus be mounted separately from the rest of the bearing package. The inner ring is only removable in the case of series NNU49. The single and double row bearings are used when very high precision under very high radial load is required. Typical areas of application include machine tools and printing machinery. The bearings facilitate bearing arrangements with very high precision, high radial rigidity and very high load-carrying capacity. In machine tool building, they provide radial support for the main spindle.
Benefits: Low noise levels, higher basic load ratings, less lubricant strain.

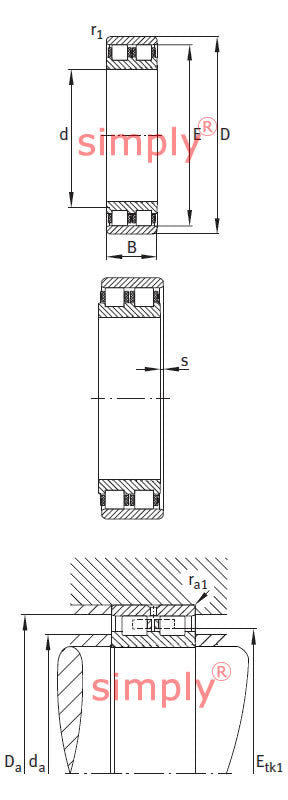

Technical
| --- | = | Bearings dimensions |
| d | = | 130mm |
| D | = | 180mm |
| B | = | 50mm |
| r< | = | sub> |
| min< | = | /sub> |
| = | 1.5mm | |
| --- | = | Axial displacement |
| F | = | 146mm |
| n< | = | sub> |
| s< | = | /sub> |
| = | 6.5mm | |
| d< | = | sub> |
| s< | = | /sub> |
| = | 3.2mm | |
| Axial dispalcement < | = | sub> |
| s< | = | /sub> |
| = | 2.7mm | |
| --- | = | Mounting dimensions |
| d< | = | sub> |
| a< | = | /sub> |
| h12 | = | 144.7mm |
| D< | = | sub> |
| A< | = | /sub> |
| H12 | = | 166mm |
| r< | = | sub> |
| a1< | = | /sub> |
| = | 1.5mm | |
| --- | = | Speeds and loads |
| C< | = | sub> |
| r< | = | /sub> |
| = | 188000 N | |
| C< | = | sub> |
| or< | = | /sub> |
| = | 385000 N | |
| Speed in grease < | = | sub> |
| ng< | = | /sub> |
| = | 4450 rpm | |
| Speed in oil < | = | sub> |
| ng< | = | /sub> |
| = | 5300 rpm | |
| Weight | = | 3.81kg |
