SKU: NTA4860-TRA4860

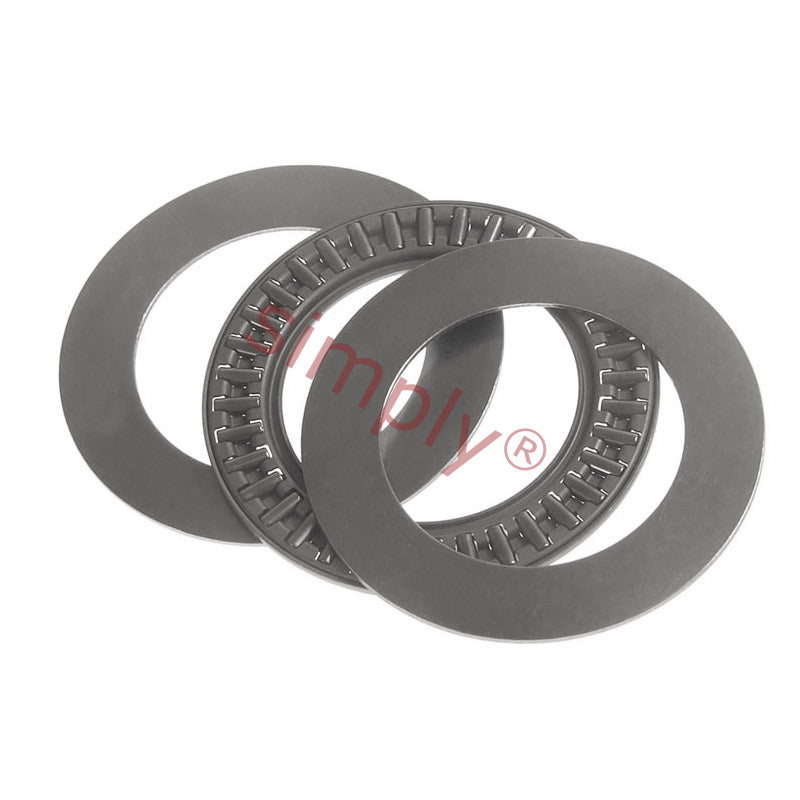

NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
- Regular price
- €18.02 ex VAT
- Sale price
- €18,02
- Regular price
-
Not in stock
Quantity Price Breaks
10
€16.04
19
€15.14
29
€14.96
39
€14.78
49
€14.60
74
€14.42
99
€13.52
199
€13.33
249
€13.15
499
€12.97
999
€12.61
SKU:
NTA4860-TRA4860
NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
- Regular price
- €18.02 ex VAT
- Sale price
- €18,02
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 3 inch |
| D | = | 3.75 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 3.09 inch |
| dw | = | 3.57 inch |
| Dynamic load | = | 26.96 kN |
| Static load | = | 172.10 kN |
| Limiting speed | = | 4400 rpm |
| Weight | = | 0.021792 kg |
| Washer | = | Dimensions |
| d | = | 3.000 inch |
| d1 | = | 3.75 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 2.997 inch |
| Pilot max | = | 3.000 inch |
| Dia to clear washer | = | 3.781 inch |
| Weight | = | 0.034 lbs |
