SKU: NTA613-TRA613

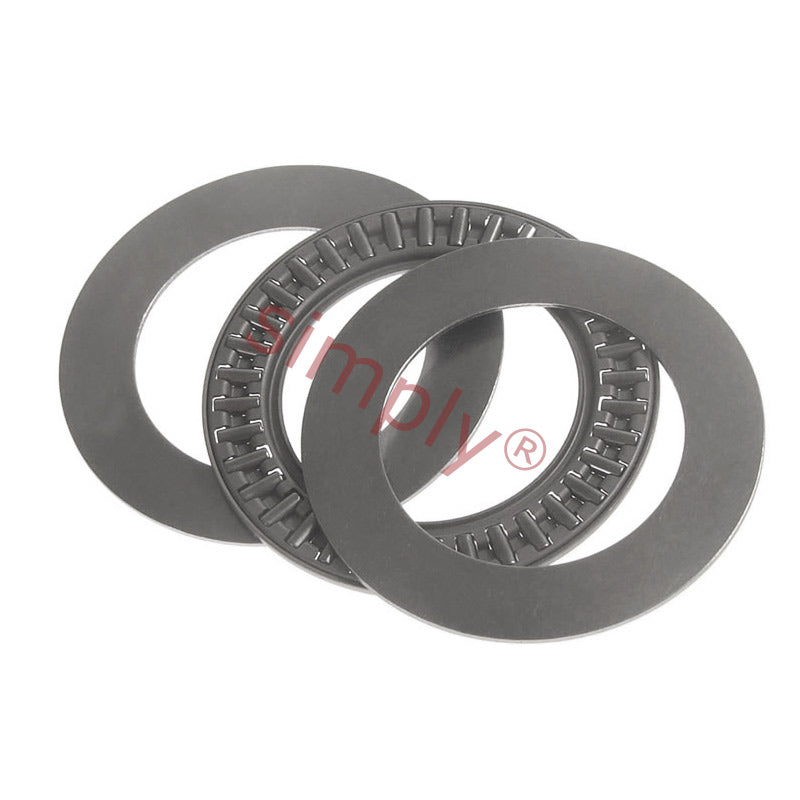

NTA613 Needle Roller Cage Thrust Assembly with 2 TRA613 Washers 0.375x0.813x0.1406 inch
- Regular price
- €12.83 ex VAT
- Sale price
- €12,83
- Regular price
-
Not in stock
Quantity Price Breaks
10
€11.42
19
€10.78
29
€10.65
39
€10.52
49
€10.39
74
€10.26
99
€9.62
199
€9.49
249
€9.37
499
€9.24
999
€8.98
SKU:
NTA613-TRA613
NTA613 Needle Roller Cage Thrust Assembly with 2 TRA613 Washers 0.375x0.813x0.1406 inch
- Regular price
- €12.83 ex VAT
- Sale price
- €12,83
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 0.375 inch |
| D | = | 0.813 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 0.46 inch |
| dw | = | 0.71 inch |
| Dynamic load | = | 60.5 kN |
| Static load | = | 14.32 kN |
| Limiting speed | = | 22000 rpm |
| Weight | = | 0.001816 kg |
| Washer | = | Dimensions |
| d | = | 0.375 inch |
| d1 | = | 0.812 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 0.372 inch |
| Pilot max | = | 0.375 inch |
| Dia to clear washer | = | 0.844 inch |
| Weight | = | 0.003 lbs |
