SKU: NTB.90120

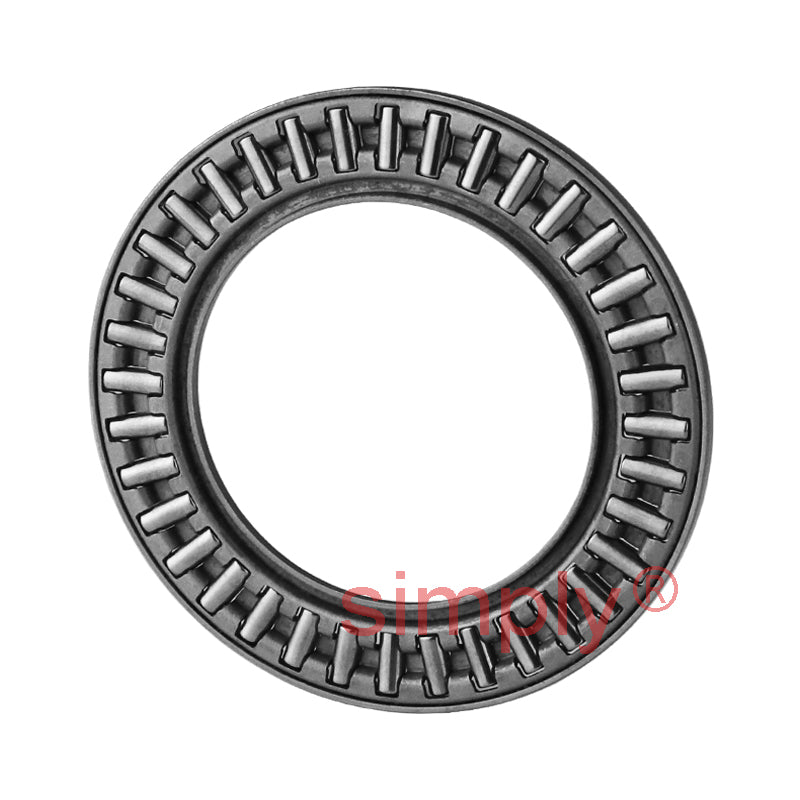

NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
- Regular price
- €28.36 ex VAT
- Sale price
- €28,36
- Regular price
-
In stock
Quantity Price Breaks
10
€25.24
20
€23.82
30
€23.54
40
€23.26
50
€22.97
75
€22.69
100
€21.27
200
€20.99
250
€20.70
500
€20.42
1000
€19.85
SKU:
NTB.90120
NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
- Regular price
- €28.36 ex VAT
- Sale price
- €28,36
- Regular price
-
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
Technical
| D | = | 120mm |
| Dw | = | 4mm |
| d | = | 90mm |
| Dynamic Load Cor | = | 64500 N |
| Static Load Cr | = | 394000 N |
| Weight | = | 0.092 kg |
