SKU: NTC1427
NTC1427 Needle Roller Cage Only 0.88x1.6875x0.0781 inch
- Regular price
- €7.21 ex VAT
- Sale price
- €7,21
- Regular price
-
In stock
Quantity Price Breaks
10
€6.42
19
€6.06
29
€5.98
39
€5.91
49
€5.84
74
€5.77
99
€5.41
199
€5.34
249
€5.26
499
€5.19
999
€5.05
SKU:
NTC1427
NTC1427 Needle Roller Cage Only 0.88x1.6875x0.0781 inch
- Regular price
- €7.21 ex VAT
- Sale price
- €7,21
- Regular price
-
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |

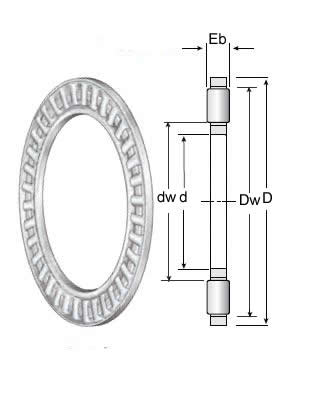

Technical
| d | = | 0.875 inch |
| D | = | 1.6875 inch |
| Eb | = | 0.0781 inch |
| Dw | = | 1.57 inch |
| dw | = | 1.02 inch |
| Dynamic load | = | 18.46 kN |
| Static load | = | 78.29 kN |
| Limiting speed | = | 9800 rpm |
| Weight | = | 0.007718 kg |
