SKU: NUKR72A-MB

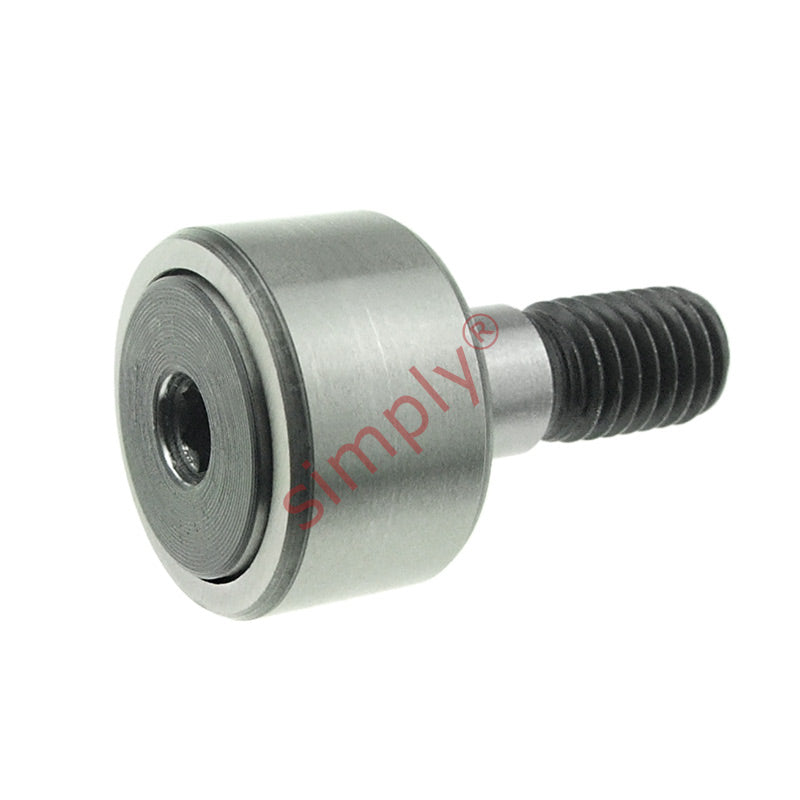

Major Brand NUKR72A Crowned Cam Follower 72x28x24 M24x1.5 Thread
- Regular price
- €168.60 ex VAT
- Sale price
- €168,60
- Regular price
-
In stock
Quantity Price Breaks
10
€150.05
19
€141.62
29
€139.94
39
€138.25
49
€136.57
74
€134.88
99
€126.45
199
€124.76
249
€123.08
499
€121.39
999
€118.02
SKU:
NUKR72A-MB
Major Brand NUKR72A Crowned Cam Follower 72x28x24 M24x1.5 Thread
- Regular price
- €168.60 ex VAT
- Sale price
- €168,60
- Regular price
-
Description
NUKR Series Crowned Cam followers: These cam followers incorporate a double-row full complement needle roller assembly allowing for maximum load support manufactured with integral flanges for axial guidance and permitting a thick outer ring allowing for heavy loads and shock to be supported. Sealing is provided by pressed sheet metal labyrinth seals. NUKR series cam followers support both heavy radial and axial loads and can operate at high speeds but require frequent re-lubrication. |
Technical
| D | = | 72mm |
| C | = | 28mm |
| d(Stud Diameter) | = | 24mm |
| B | = | 80mm |
| B1 | = | 49.5mm |
| B2 | = | 11mm |
| C1 | = | 1.3mm |
| d1 | = | 44mm |
| G | = | M24x1.5 |
| G1 | = | 25mm |
| M1 | = | 4mm |
| r min | = | 1.1mm |
| SW | = | 14mm |
| Dynamic load | = | 45700 N |
| Static load | = | 58500 N |
| Fatigue load limit Pu | = | 7100 N |
| Radial dynamic load | = | 34500 N |
| Radial static load | = | 50000 N |
| Speed rating | = | 2600 rpm |
| Weight | = | 1020 g |
