SKU: NUKRE35A-MB
Major Brand NUKRE35A Crowned Cam Follower with Eccentric Stud 35x18x20 M16x1.5 Thread
- Regular price
- €112.19 ex VAT
- Sale price
- €112,19
- Regular price
-
Quantity Price Breaks
Major Brand NUKRE35A Crowned Cam Follower with Eccentric Stud 35x18x20 M16x1.5 Thread
- Regular price
- €112.19 ex VAT
- Sale price
- €112,19
- Regular price
-
Description
NUKRE Series Crowned Cam Followers: Different from the NUKR series by the addition of a shrink-fit eccentric collar on the stud. These cam followers incorporate a double row full complement needle roller assembly allowing for maximum load support manufactured with integral flanges for axial guidance and permitting a thick outer ring allowing for heavy loads and shock to be supported. Sealing is provided by pressed sheet metal labyrinth seals. NUKRE series cam followers support both heavy radial and axial loads and can operate at high speeds but require frequent re-lubrication. |

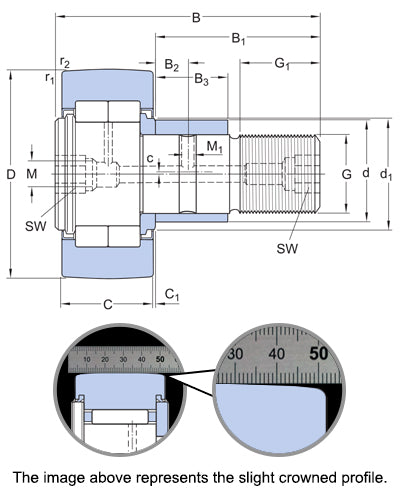

Technical
| D | = | 35mm |
| C | = | 18mm |
| d(Stud Diameter) | = | 20mm |
| B | = | 52mm |
| B1 | = | 29.5mm |
| C1 | = | 3.8mm |
| d1 | = | 27mm |
| G | = | M16x1.5 |
| G1 | = | 17mm |
| r min | = | 0.6mm |
| SW | = | 8mm |
| Eccentric stud c | = | 1mm |
| B3 | = | 12mm |
| Dynamic load | = | 16800 N |
| Static load | = | 17600 N |
| Fatigue load limit Pu | = | 2000 N |
| Radial dynamic load | = | 8650 N |
| Radial static load | = | 12200 N |
| Speed rating | = | 6500 rpm |
| Weight | = | 180 g |
