SKU: NUP210-CDX

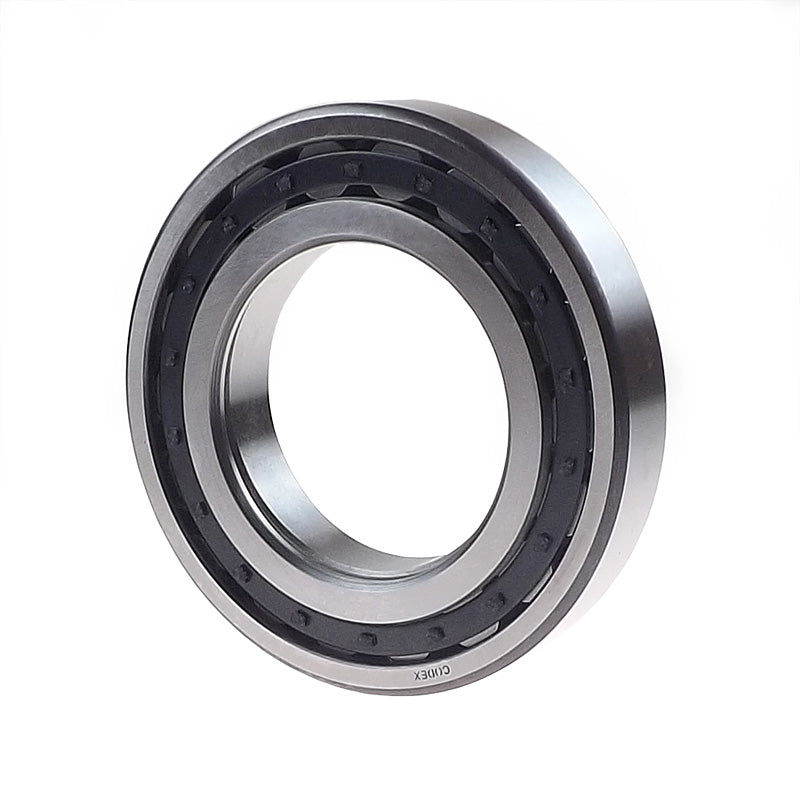

Codex NUP210 Single Row Cylindrical Roller Bearing 50x90x20mm
- Regular price
- €63.31 ex VAT
- Sale price
- €63,31
- Regular price
-
In stock
Quantity Price Breaks
10
€56.35
19
€53.18
29
€52.55
39
€51.91
49
€51.28
74
€50.65
99
€47.48
199
€46.85
249
€46.22
499
€45.58
999
€44.32
SKU:
NUP210-CDX
Codex NUP210 Single Row Cylindrical Roller Bearing 50x90x20mm
- Regular price
- €63.31 ex VAT
- Sale price
- €63,31
- Regular price
-
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 50mm |
| D | = | 90mm |
| B | = | 20mm |
| Dynamic load C | = | 73.5 kN |
| Static load Co | = | 69.5 kN |
| Fatigue load limit Pu | = | 8.8 kN |
| Reference speed | = | 8500 rpm |
| Limiting speed | = | 9000 rpm |
| Weight | = | 0.51 kg |
| Cage options | = | J.ML |
| d1 | = | 64mm |
| D1 | = | 78mm |
| F, E | = | 59.5mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| da min | = | 57mm |
| db min | = | 66mm |
| Da max | = | 83mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.15 |
