SKU: PBS-DS-10B-13

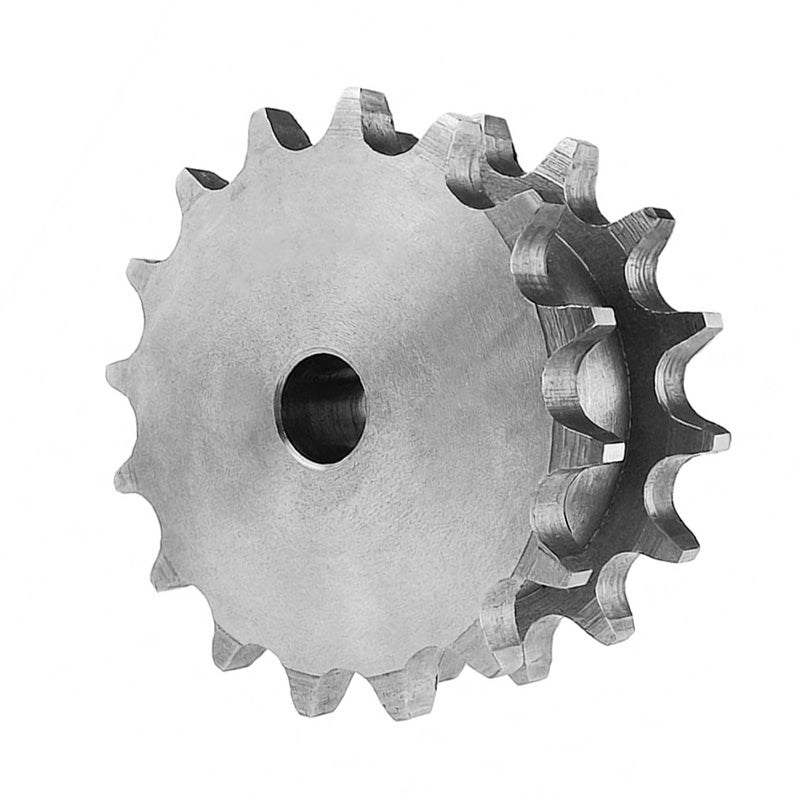

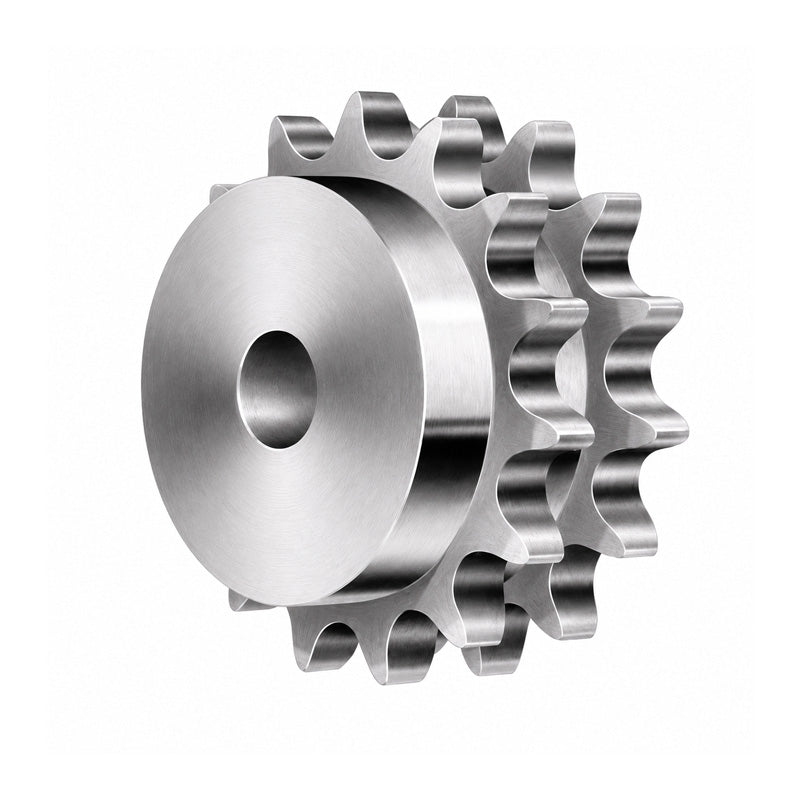

13 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- €18.36 ex VAT
- Sale price
- €18,36
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
5
€16.34
9
€15.42
19
€15.24
29
€15.06
49
€14.87
74
€14.69
99
€13.77
199
€13.59
249
€13.40
499
€13.22
999
€12.85
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 13 |
| Pitch Diameter dp | = | 66.32mm |
| Outer Diameter de | = | 73mm |
| Width B | = | 36.5mm |
| Hub Diameter N | = | 50mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Stock Bore D1 | = | 19mm |
| Weight | = | 0.462 kg |
