SKU: PBS-DS-10B-20

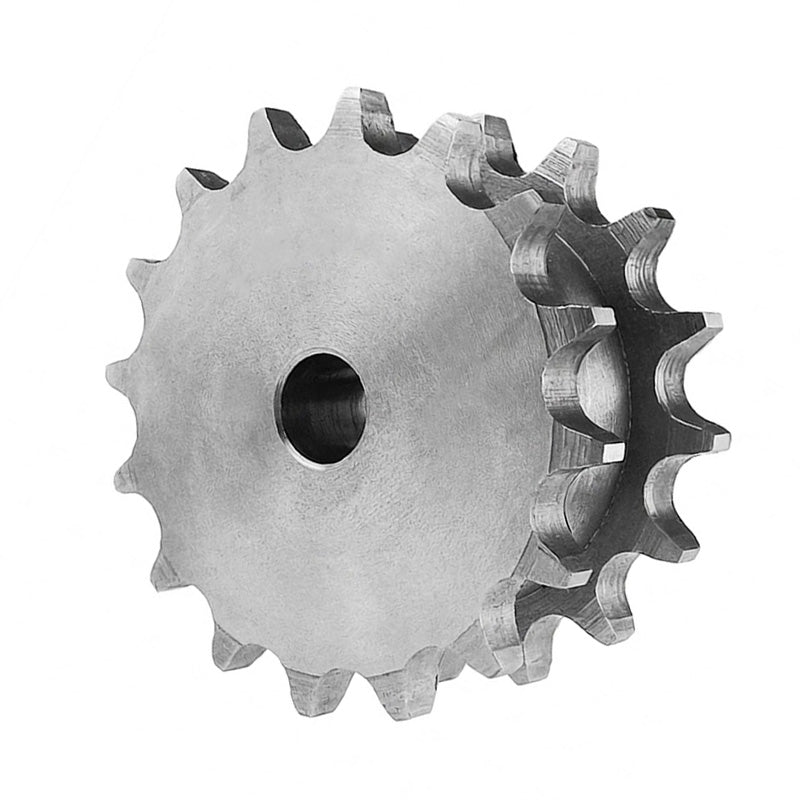

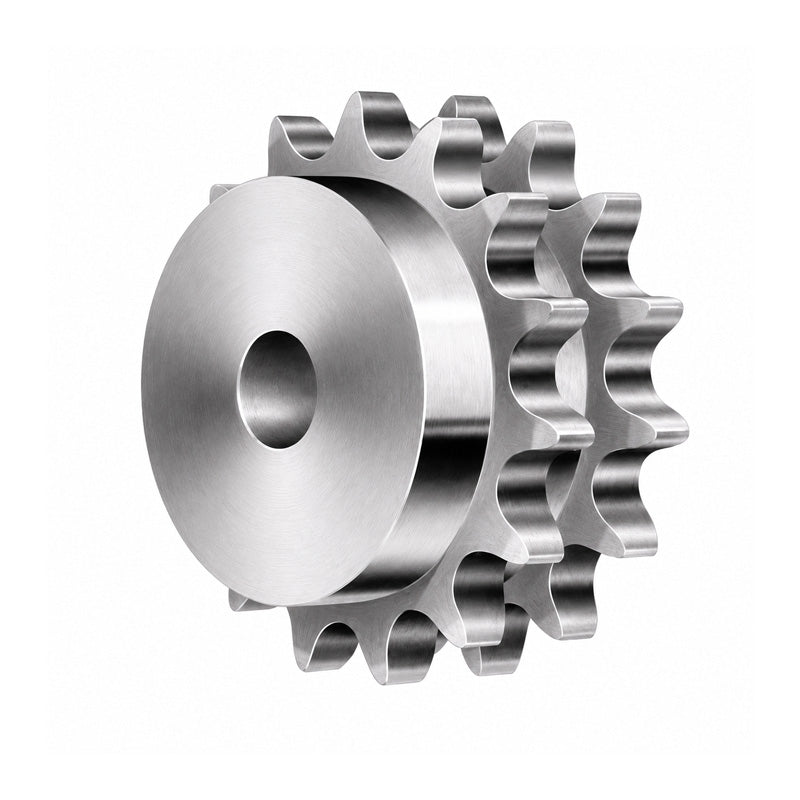

20 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- €31.88 ex VAT
- Sale price
- €31,88
- Regular price
-
In stock
Quantity Price Breaks
5
€28.37
9
€26.78
19
€26.46
29
€26.14
49
€25.82
74
€25.50
99
€23.91
199
€23.59
249
€23.27
499
€22.95
999
€22.32
SKU:
PBS-DS-10B-20
20 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- €31.88 ex VAT
- Sale price
- €31,88
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 20 |
| Pitch Diameter dp | = | 101.49mm |
| Outer Diameter de | = | 108.4mm |
| Width B | = | 36.5mm |
| Hub Diameter N | = | 85mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Stock Bore D1 | = | 19mm |
| Weight | = | 0.952 kg |
