SKU: PBS-DS-16B-14

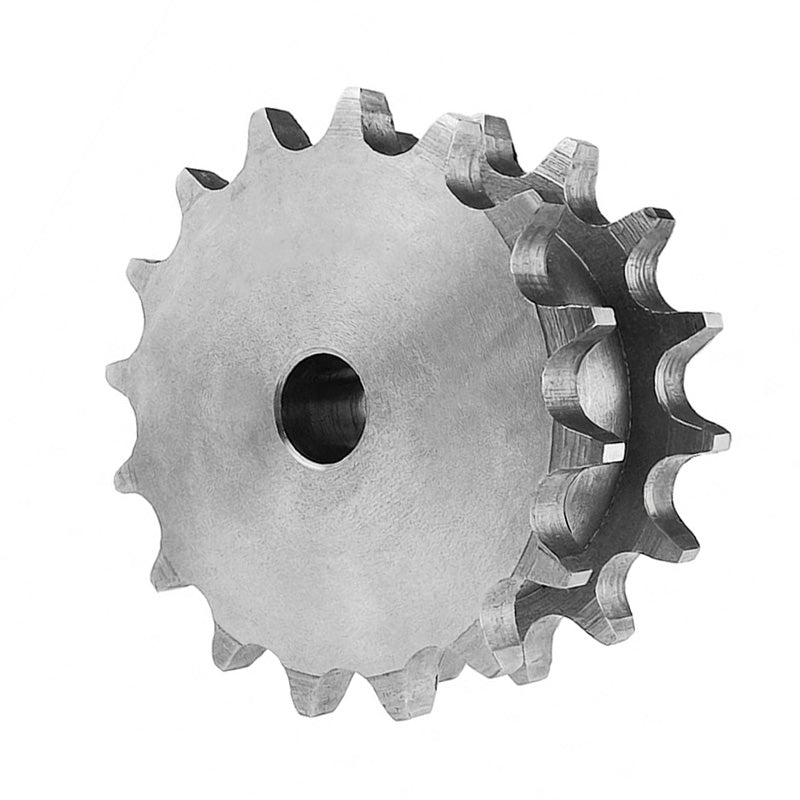

14 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €52.67 ex VAT
- Sale price
- €52,67
- Regular price
-
Not in stock
Quantity Price Breaks
5
€46.88
9
€44.24
19
€43.72
29
€43.19
49
€42.66
74
€42.14
99
€39.50
199
€38.98
249
€38.45
499
€37.92
999
€36.87
SKU:
PBS-DS-16B-14
14 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €52.67 ex VAT
- Sale price
- €52,67
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

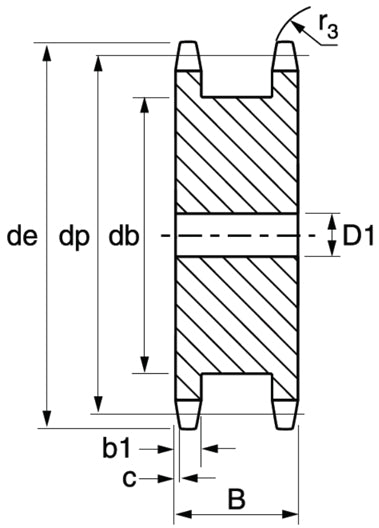

Technical
| No. of Teeth | = | 14 |
| Pitch Diameter dp | = | 114.15mm |
| Outer Diameter de | = | 125mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 88mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Stock Bore D1 | = | 25mm |
| Weight | = | 2.625 kg |
