SKU: PBS-DS-16B-15

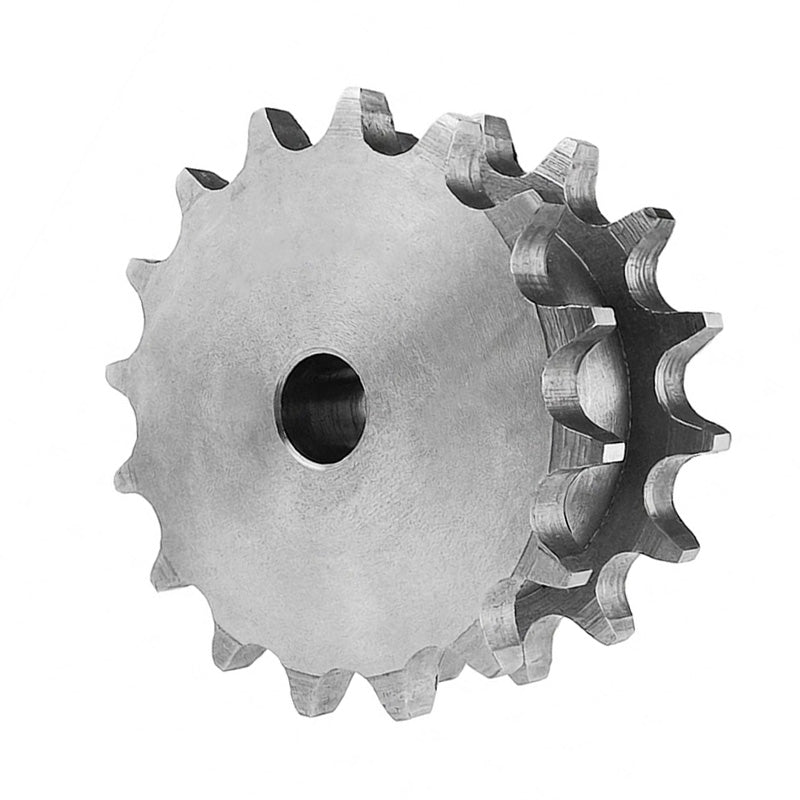

15 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €67.15 ex VAT
- Sale price
- €67,15
- Regular price
-
Not in stock
Quantity Price Breaks
5
€59.76
9
€56.41
19
€55.73
29
€55.06
49
€54.39
74
€53.72
99
€50.36
199
€49.69
249
€49.02
499
€48.35
999
€47.01
SKU:
PBS-DS-16B-15
15 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €67.15 ex VAT
- Sale price
- €67,15
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 15 |
| Pitch Diameter dp | = | 122.17mm |
| Outer Diameter de | = | 133mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 97mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Stock Bore D1 | = | 25mm |
| Weight | = | 3.052 kg |
