SKU: PC14M-44S-90

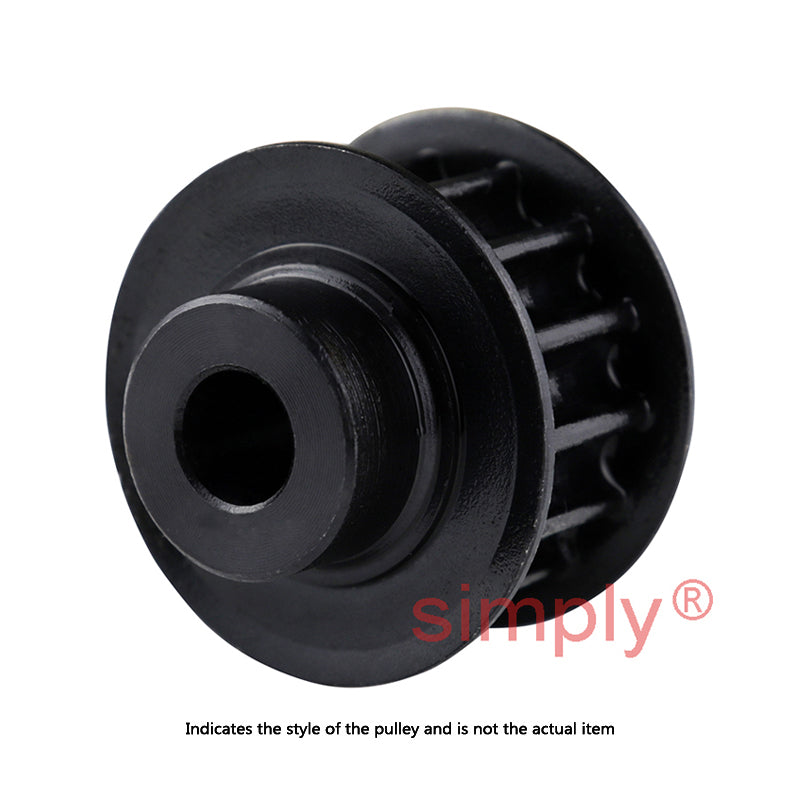

PC14M-44S-90 - 14mm Pitch 44 Tooth Polychain and Synchrochain Steel Pilot Bore Timing Belt Pulley for 90mm Wide Belts
- Regular price
- €215.34 ex VAT
- Sale price
- €215,34
- Regular price
-
Quantity Price Breaks
PC14M-44S-90 - 14mm Pitch 44 Tooth Polychain and Synchrochain Steel Pilot Bore Timing Belt Pulley for 90mm Wide Belts
- Regular price
- €215.34 ex VAT
- Sale price
- €215,34
- Regular price
-
Description
C14M Polychain and Synchrochain Timing Belt Pulley: We offer a comprehensive selection of timing pulleys (sprockets) designed for use with Synchrochain and Poly Chain belts. These pulleys are available in both pilot bore and taper lock bush types, accommodating a variety of applications. Manufactured from high-quality materials such as steel or cast iron with steel flanges, These pulleys meet industry standards, ensuring they deliver reliable, high-power performance. With a broad range of options and precisely engineered profiles, these pulleys provide a cost-effective solution without compromising on quality or durability.
Benefits: High-quality and durable, cost-effective solution, wide range availability
Technical
| Material | = | Steel |
| No. teeth | = | 44 |

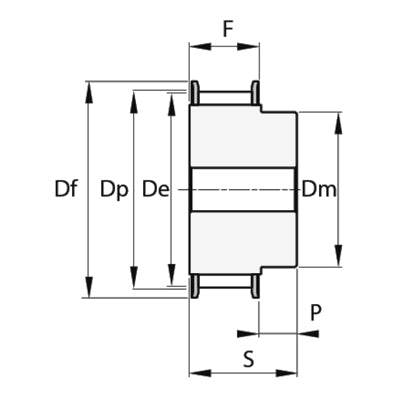

| Schematic Type | = | 1F |
| Bush no. | = | 25.4mm (Pilot Bored) |
| Belt Width | = | 90mm |
| Max. bore (metric) | = | 140mm |
| Dp | = | 196.08mm |
| De | = | 193.28mm |
| Df | = | 211mm |
| Dm | = | 169mm |
| F | = | 106mm |
| P | = | 30mm |
| S | = | 136mm |
| Weight Kg | = | 26.18 kg |
