SKU: PCFTR25-XL

INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore

€51.44 ex VAT
€51,44
ex VAT
Not in stock

Quantity Price Breaks

4 €45.78
9 €43.21
19 €42.70
29 €42.18
39 €41.67
49 €41.15
59 €38.58
69 €38.07
79 €37.55
89 €37.04
99 €36.01
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore
INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore
INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore
INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore
INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore
INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore
INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore
SKU: PCFTR25-XL

INA PCFTR25XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 25mm Bore

€51.44 ex VAT
€51,44
ex VAT

Description

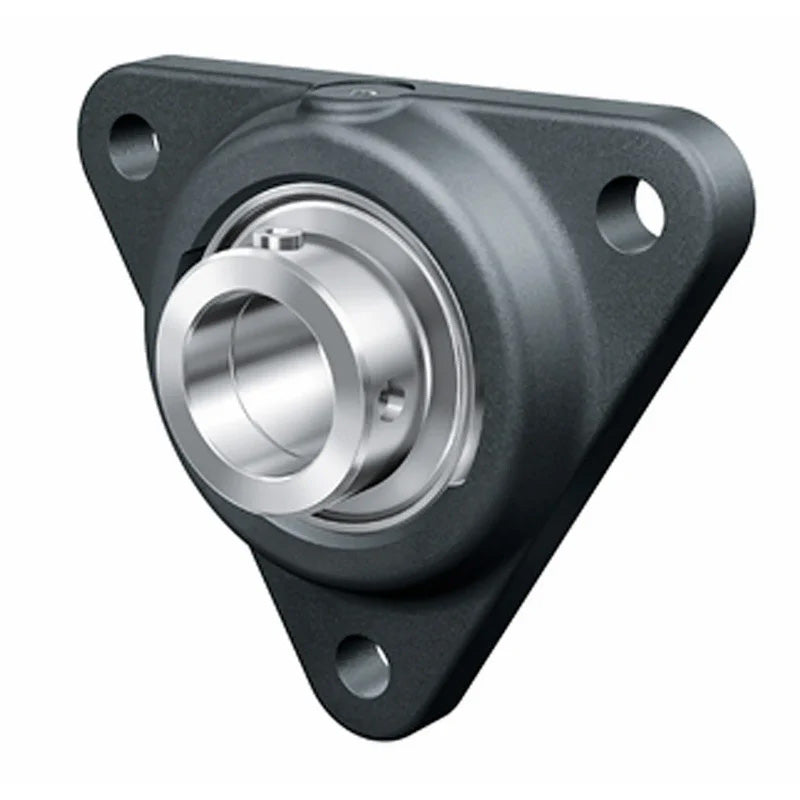

INA 3 Bolt Triangular Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This triangular cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.

Technical

d = 25mm
H2 = 97mm
U = 36mm
A = 22mm
A1 = 12mm
A2 = 12.5mm
B1 = 31mm
d3 max = 37.5mm
H1 = 36mm
J = 96mm
N = 11.5mm
Q = M6
Mass = 0.71 kg
Basic dynamic load rating Cr = 14900 N
Basic static load rating Cor = 7800 N
Designation of housing = CFTR05
Designation of bearing = GRAE25-XL-NPP-B
