SKU: PCJT35-TV-FA125.5-INA

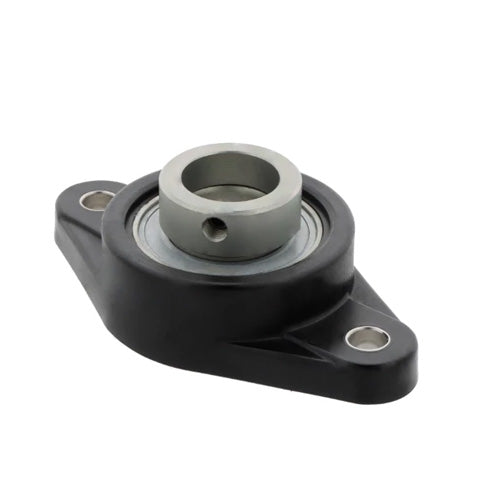

INA PCJT35-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 35mm Bore
- Regular price
- €73.61 ex VAT
- Sale price
- €73,61
- Regular price
-
Not in stock
Quantity Price Breaks
4
€65.51
9
€61.83
19
€61.10
29
€60.36
39
€59.62
49
€58.89
59
€55.21
69
€54.47
79
€53.74
89
€53.00
99
€51.53
SKU:
PCJT35-TV-FA125.5-INA
INA PCJT35-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 35mm Bore
- Regular price
- €73.61 ex VAT
- Sale price
- €73,61
- Regular price
-
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric collar. This oval plastic housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. The bearing insert has a Corrotect® coating which makes it suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft. |
