SKF PCM101215E Metric Plain Bush 10x12x15mm

SKU: PCM101215E-SKF

SKF PCM101215E Metric Plain Bush 10x12x15mm

€5.28 ex VAT
€5,28
ex VAT
In stock

Quantity Price Breaks

9 €4.70
19 €4.44
29 €4.38
39 €4.33
49 €4.28
69 €4.22
99 €3.96
199 €3.91
249 €3.85
499 €3.80
999 €3.70
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF PCM101215E Metric Plain Bush 10x12x15mm
SKU: PCM101215E-SKF

SKF PCM101215E Metric Plain Bush 10x12x15mm

€5.28 ex VAT
€5,28
ex VAT

Description

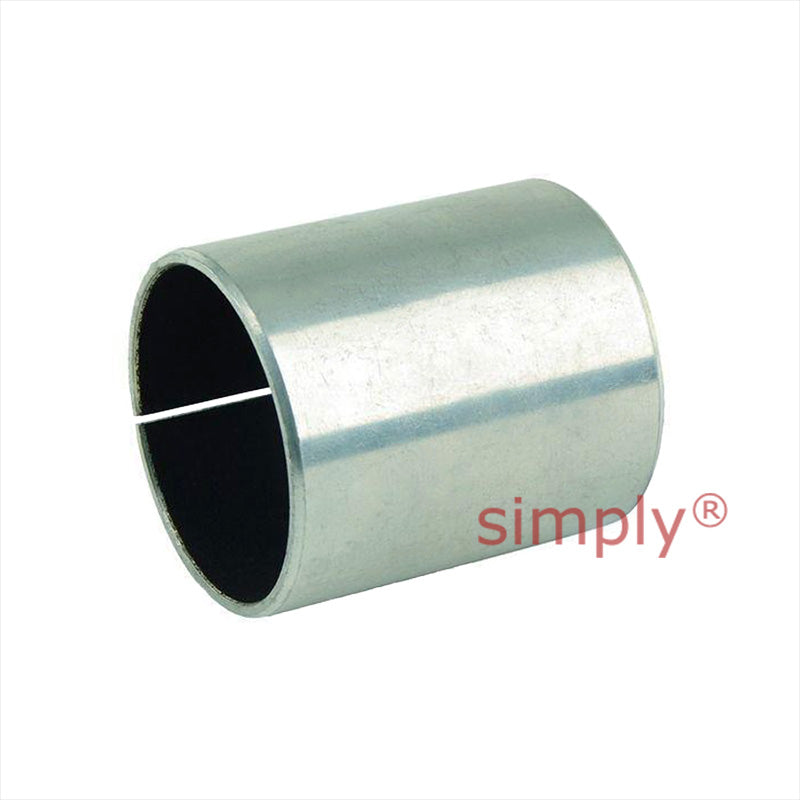

PCM-E Plain Bushings: Plain bushings of triple-layer PTFE composite material. Suitable for bearing arrangements that have to support radial loads only. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
