SKU: PE-216FL-FLEX_10M

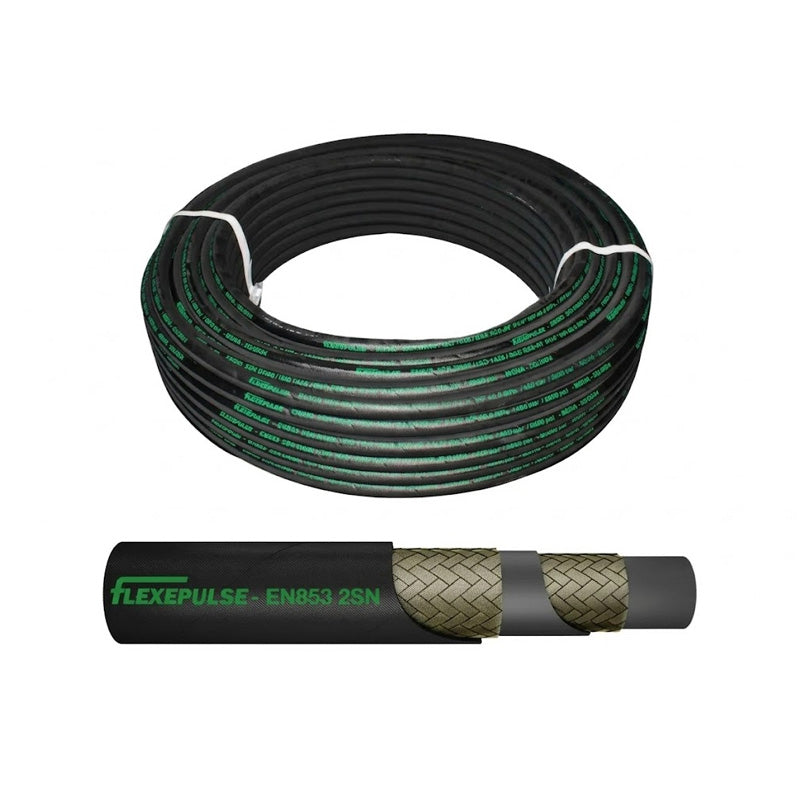

FLEXEPULSE 5/8 inch 2SN Hydraulic Hose - Allow 2-3 Days
- Regular price
- €59.46 ex VAT
- Sale price
- €59,46
- Regular price
-
ex VAT
Quantity Price Breaks
Description
FLEXEPULSE 2SN Hydraulic Hose: This is a durable hose designed for medium to high-pressure hydraulic applications. Featuring a braided 2-wire construction with maximum-strength steel wire braids, it meets SAE 100 R2S, EN853 2SN, and ISO 1436-2SN standards, and is qualified for 400,000 impulse cycles. The hose's synthetic rubber core is resistant to hydraulic fluids, while its abrasion and ozone-resistant cover ensures long-lasting performance. Suitable for temperatures from -40°C to 100°C (up to 120°C intermittently), it pairs well with PF15/PF12 ferrules.
Benefits: High durability and strength, broad temperature and fluid compatibility, long-term performance
Technical
| Hose Size | = | 16 Din |
| Hose Size | = | 5/8 inch |
| Nominal Inside | = | 16.3mm |
| Nominal Hose OD | = | 25.2mm |
| Max. Working Pressure | = | 250 bar |
| Max. Working Pressure | = | 3625 psi |
| Min. Burst Pressure | = | 1000 bar |
| Min. Burst Pressure | = | 14500 psi |
| Min. Bend Radius | = | 8.1 inch |
| Min. Bend Radius | = | 205mm |
| Weight | = | 0.776 kg |
