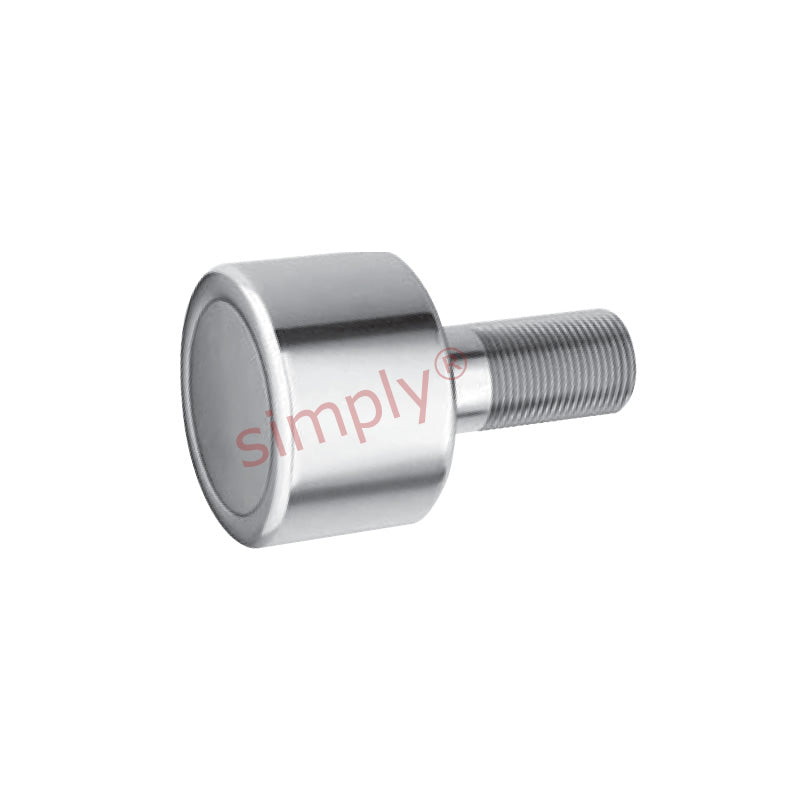

Major Brand PHR4-1/2 Hex Head Plain Hi-Roller Bearing 4-1/2 inch Outside Diameter

SKU: PHR-4-1/2

Major Brand PHR4-1/2 Hex Head Plain Hi-Roller Bearing 4-1/2 inch Outside Diameter

€376.29 ex VAT
€376,29
ex VAT
Equivalent to: PHR-450-A PLR-4-1/2 PCF-4-1/2 PCR-4-1/2
Not in stock

Quantity Price Breaks

3 €334.90
4 €316.08
9 €312.32
19 €308.56
29 €304.79
39 €301.03
49 €282.22
59 €278.45
249 €274.69
499 €270.93
999 €263.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand PHR4-1/2 Hex Head Plain Hi-Roller Bearing 4-1/2 inch Outside Diameter
SKU: PHR-4-1/2

Major Brand PHR4-1/2 Hex Head Plain Hi-Roller Bearing 4-1/2 inch Outside Diameter

€376.29 ex VAT
€376,29
ex VAT

Description

Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers.
Benefits: Ideal for use in environments where dust or high moisture is present.

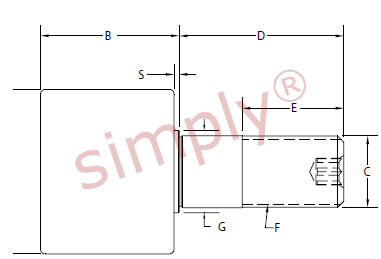

Technical

A = 4.5 inch
B = 2 inch
C = 1.25 inch
D = 2.75 inch
E = 1.75 inch
Thread class 2A F = 1-1/4-12 UNF
G = 1.75 inch
S = 0.062 inch
Basic dynamic rating = 14270 lbs
Dynamic thrust load rating = 12000 lbs
Max static capacity = 20000 lbs
