SKU: PHRE-1-1/2

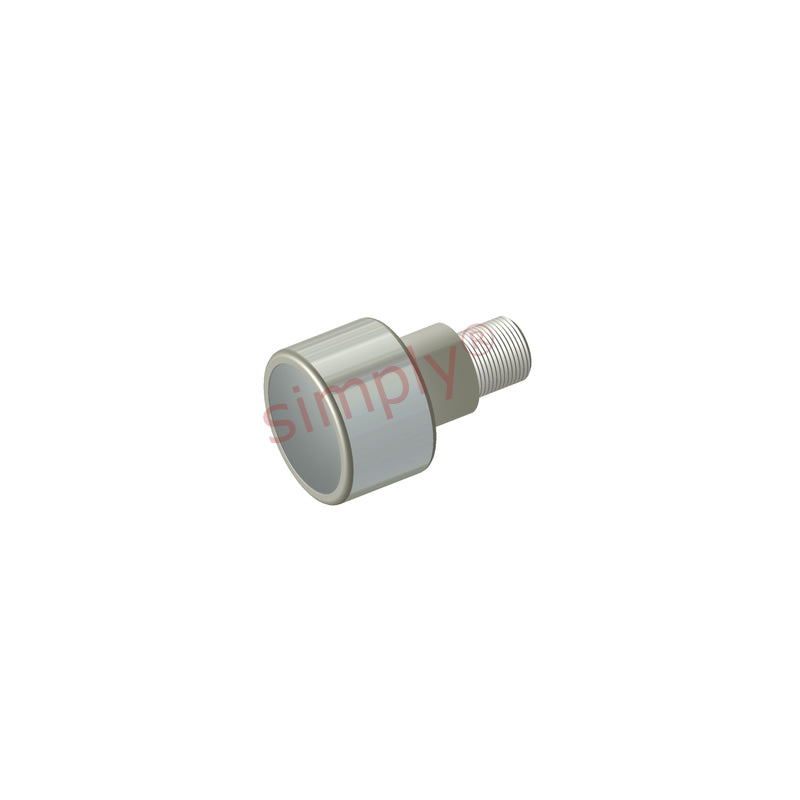

Major Brand PHRE1-1/2 Hex Head Plain Eccentric Hi-Roller Bearing 1-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €127.60 ex VAT
- Sale price
- €127,60
- Regular price
-
Not in stock
Quantity Price Breaks
3
€113.56
4
€107.18
9
€105.91
19
€104.63
29
€103.36
39
€102.08
49
€95.70
59
€94.42
249
€93.15
499
€91.87
999
€89.32
SKU:
PHRE-1-1/2
Major Brand PHRE1-1/2 Hex Head Plain Eccentric Hi-Roller Bearing 1-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €127.60 ex VAT
- Sale price
- €127,60
- Regular price
-
Description
|
Plain Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Technical
| A | = | 1.5 inch |
| B | = | 1.188 inch |
| D | = | 1.5 inch |
| E | = | 3/4 inch |
| Thread class 2A F | = | 5/8-18 UNF |
| G | = | 1.125 inch |
| S | = | 0.062 inch |
| J | = | 0.875 inch |
| K | = | 0.73 inch |
| W | = | 0.03 inch |
| Basic dynamic rating | = | 2760 lbs |
| Dynamic thrust load rating | = | 680 lbs |
| Max static capacity | = | 1100 lbs |
