SKU: PHS25L.EU

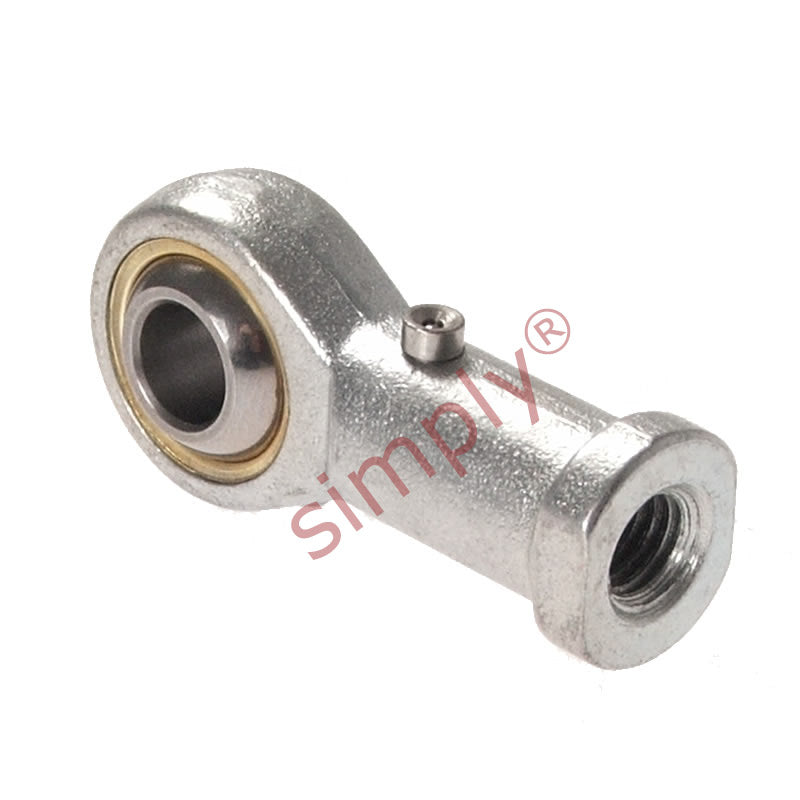

Budget PHS25L Left Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread
- Regular price
- €50.93 ex VAT
- Sale price
- €50,93
- Regular price
-
Not in stock
Quantity Price Breaks
10
€45.33
19
€42.78
29
€42.27
39
€41.76
49
€41.25
74
€40.74
99
€38.20
199
€37.69
249
€37.18
499
€36.67
999
€35.65
SKU:
PHS25L.EU
Budget PHS25L Left Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread
- Regular price
- €50.93 ex VAT
- Sale price
- €50,93
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 25mm |
| B | = | 31mm |
| r1 | = | 0.6mm |
| C1 | = | 22mm |
| d1 max | = | 29.5mm |
| d2 | = | 60mm |
| d3 | = | M24x2 |
| h1 | = | 94mm |
| L3 | = | 48mm |
| L4 | = | 124mm |
| L5 | = | 12mm |
| d4 | = | 33.5mm |
| d5 | = | 42mm |
| S | = | 36mm |
| Ball diameter | = | 1-11/16 inch |
| Dynamic load Cr | = | 47.1 kN |
| Static load Cor | = | 74.1 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.75 kg |
