SKU: PHS28.EU

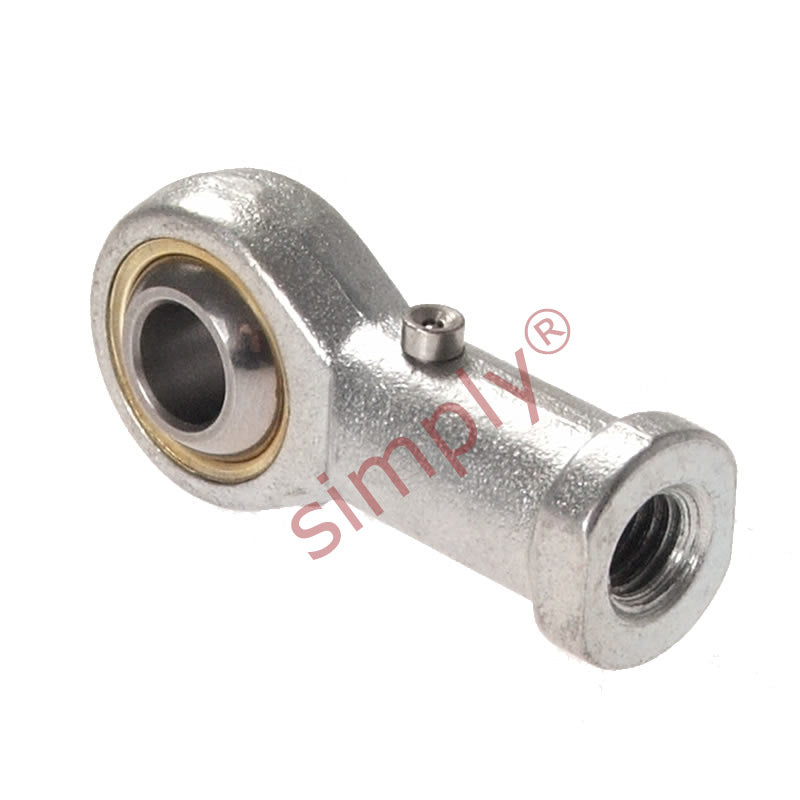

Budget PHS28 Right Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
- Regular price
- €27.25 ex VAT
- Sale price
- €27,25
- Regular price
-
In stock
Quantity Price Breaks
10
€24.25
19
€22.89
29
€22.62
39
€22.35
49
€22.07
74
€21.80
99
€20.44
199
€20.17
249
€19.89
499
€19.62
999
€19.08
SKU:
PHS28.EU
Budget PHS28 Right Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
- Regular price
- €27.25 ex VAT
- Sale price
- €27,25
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 28mm |
| B | = | 35mm |
| r1 | = | 0.6mm |
| C1 | = | 25mm |
| d1 max | = | 32.29mm |
| d2 | = | 66mm |
| d3 | = | M27x2 |
| h1 | = | 103mm |
| L3 | = | 53mm |
| L4 | = | 136mm |
| L5 | = | 12mm |
| d4 | = | 37mm |
| d5 | = | 46mm |
| S | = | 41mm |
| Ball diameter | = | 1-7/8 inch |
| Dynamic load Cr | = | 59.5 kN |
| Static load Cor | = | 88.7 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.95 kg |
