SKU: PHS28L.EU

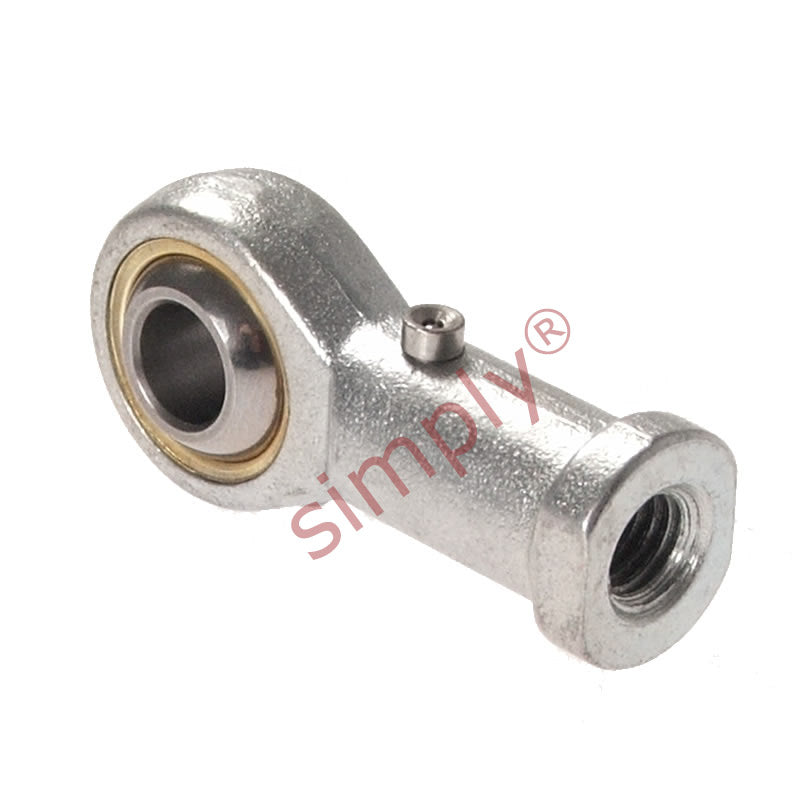

Budget PHS28L Left Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
- Regular price
- €167.28 ex VAT
- Sale price
- €167,28
- Regular price
-
In stock
Quantity Price Breaks
10
€148.88
19
€140.52
29
€138.84
39
€137.17
49
€135.50
74
€133.82
99
€125.46
199
€123.79
249
€122.11
499
€120.44
999
€117.10
SKU:
PHS28L.EU
Budget PHS28L Left Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
- Regular price
- €167.28 ex VAT
- Sale price
- €167,28
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 28mm |
| B | = | 35mm |
| r1 | = | 0.6mm |
| C1 | = | 25mm |
| d1 max | = | 32.29mm |
| d2 | = | 66mm |
| d3 | = | M27x2 |
| h1 | = | 103mm |
| L3 | = | 53mm |
| L4 | = | 136mm |
| L5 | = | 12mm |
| d4 | = | 37mm |
| d5 | = | 46mm |
| S | = | 41mm |
| Ball diameter | = | 1-7/8 inch |
| Dynamic load Cr | = | 59.5 kN |
| Static load Cor | = | 88.7 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.95 kg |
