SKU: PHS30.EU

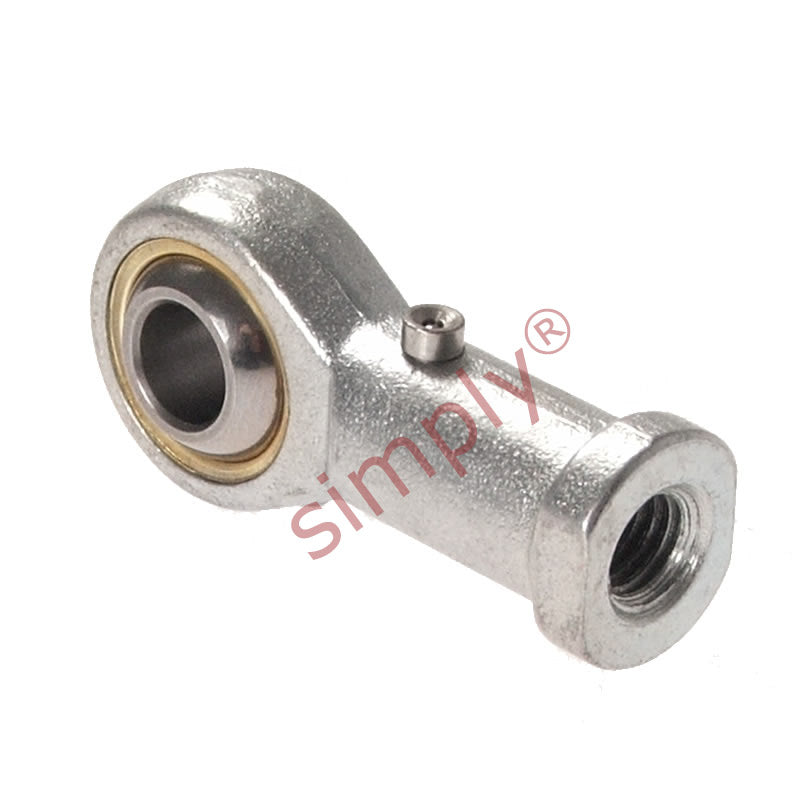

Budget PHS30 Right Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
- Regular price
- €67.14 ex VAT
- Sale price
- €67,14
- Regular price
-
In stock
Quantity Price Breaks
10
€59.75
19
€56.40
29
€55.73
39
€55.05
49
€54.38
74
€53.71
99
€50.36
199
€49.68
249
€49.01
499
€48.34
999
€47.00
SKU:
PHS30.EU
Budget PHS30 Right Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
- Regular price
- €67.14 ex VAT
- Sale price
- €67,14
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 30mm |
| B | = | 37mm |
| r1 | = | 0.6mm |
| C1 | = | 25mm |
| d1 max | = | 34.8mm |
| d2 | = | 70mm |
| d3 | = | M30x2 |
| h1 | = | 110mm |
| L3 | = | 56mm |
| L4 | = | 145mm |
| L5 | = | 15mm |
| d4 | = | 40mm |
| d5 | = | 50mm |
| S | = | 41mm |
| Ball diameter | = | 2 inch |
| Dynamic load Cr | = | 63.5 kN |
| Static load Cor | = | 94 kN |
| Max angle & | = | alpha |
| = | 17 | |
| Weight | = | 1.13 kg |
