SKU: PHS30L.EU

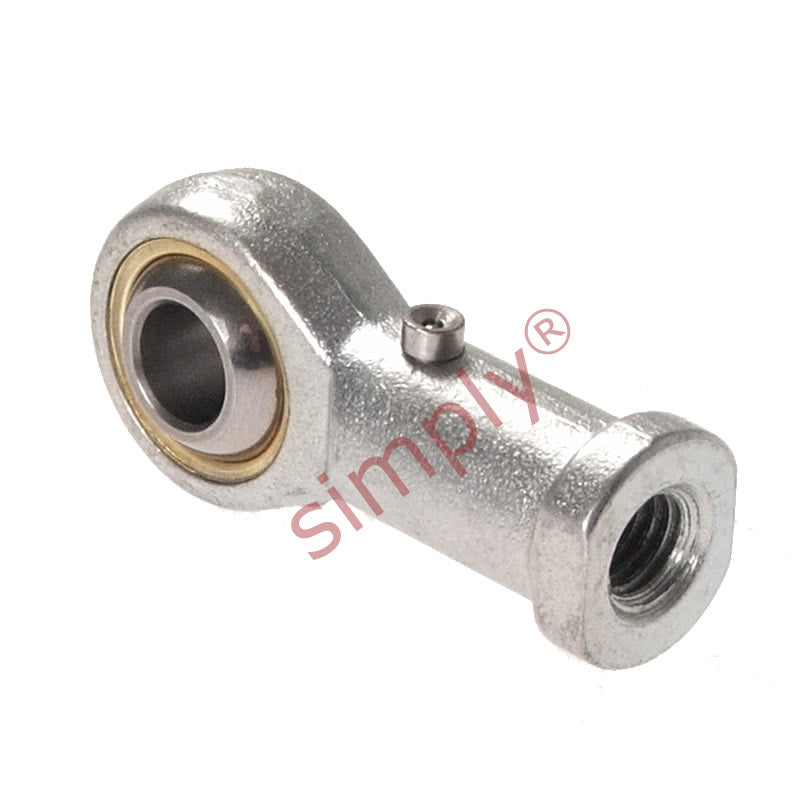

Budget PHS30L Left Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
- Regular price
- €70.50 ex VAT
- Sale price
- €70,50
- Regular price
-
Not in stock
Quantity Price Breaks
10
€62.75
19
€59.22
29
€58.52
39
€57.81
49
€57.11
74
€56.40
99
€52.88
199
€52.17
249
€51.47
499
€50.76
999
€49.35
SKU:
PHS30L.EU
Budget PHS30L Left Hand Steel / Bronze Lined Plain Female Rod End 30mm Bore M30x2 Thread
- Regular price
- €70.50 ex VAT
- Sale price
- €70,50
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 30mm |
| B | = | 37mm |
| r1 | = | 0.6mm |
| C1 | = | 25mm |
| d1 max | = | 34.8mm |
| d2 | = | 70mm |
| d3 | = | M30x2 |
| h1 | = | 110mm |
| L3 | = | 56mm |
| L4 | = | 145mm |
| L5 | = | 15mm |
| d4 | = | 40mm |
| d5 | = | 50mm |
| S | = | 41mm |
| Ball diameter | = | 2 inch |
| Dynamic load Cr | = | 63.5 kN |
| Static load Cor | = | 94 kN |
| Max angle & | = | alpha |
| = | 17 | |
| Weight | = | 1.13 kg |
