SKU: POS10-MF.EU

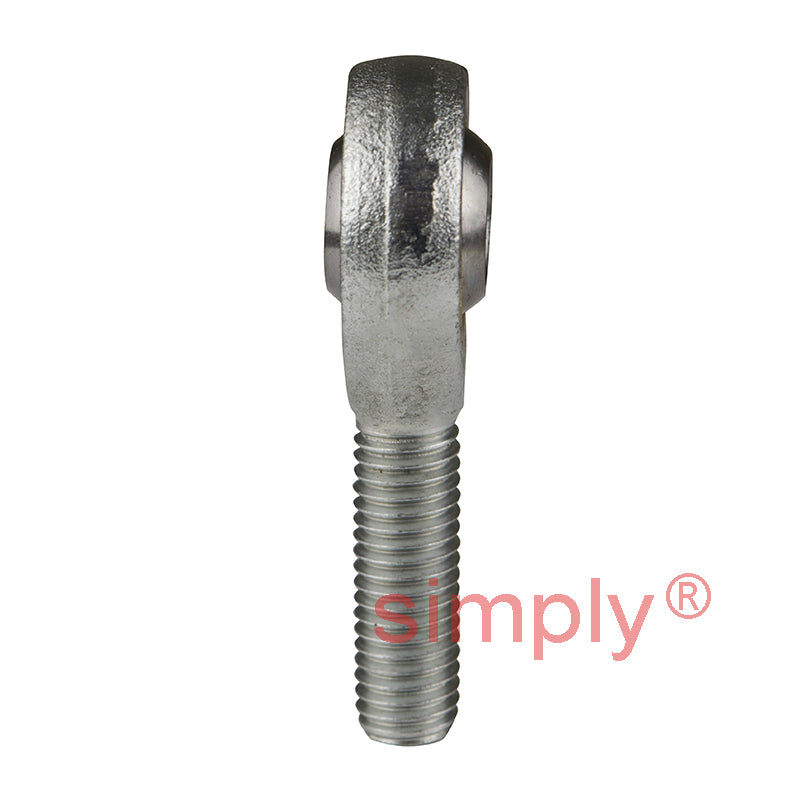

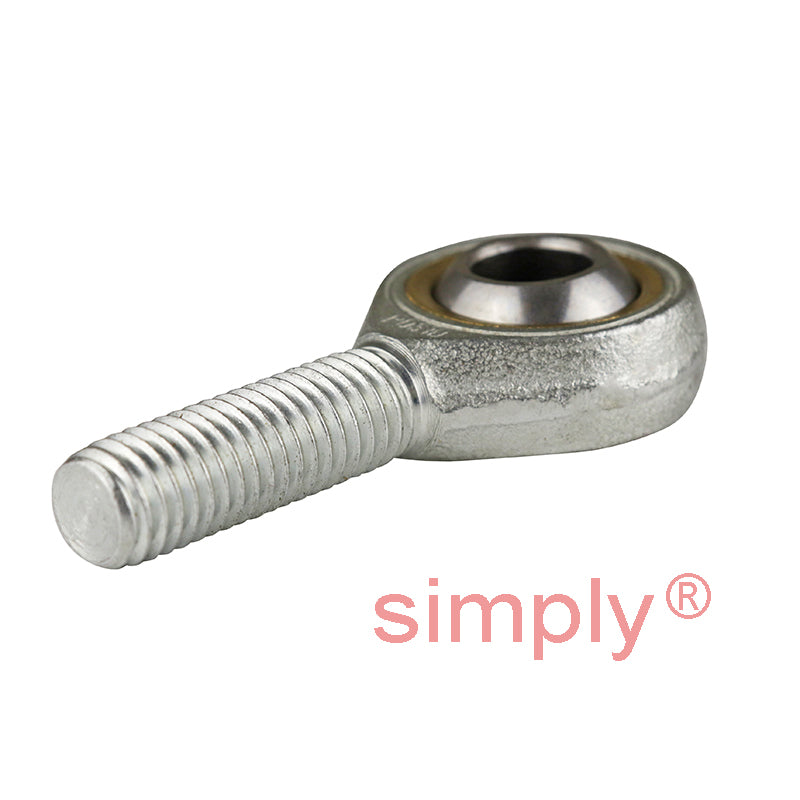

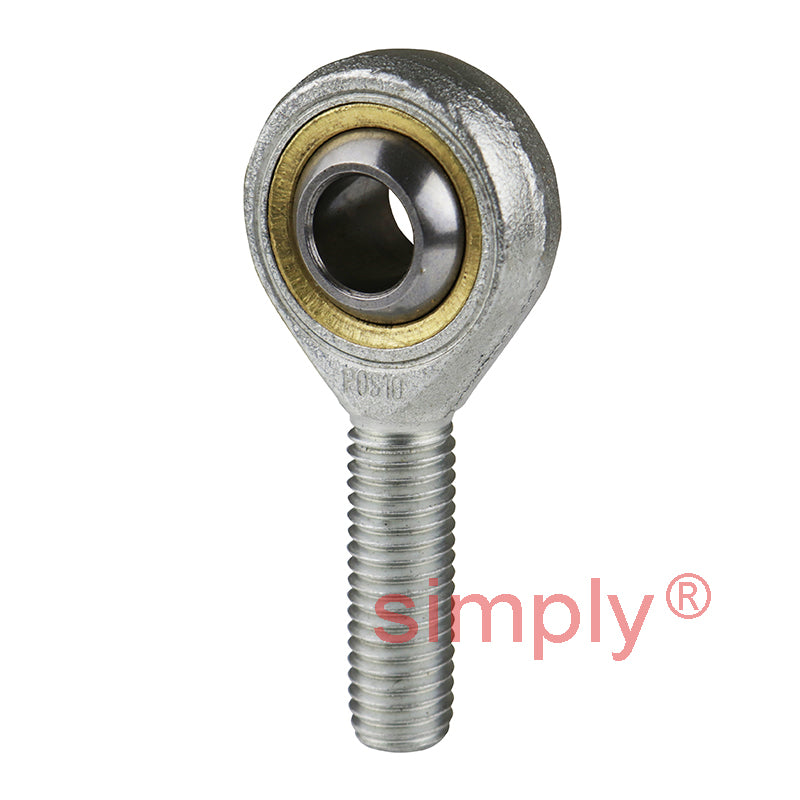

Budget POS10EC Maintenance Free Right Hand Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- €5.19 ex VAT
- Sale price
- €5,19
- Regular price
-
In stock
Quantity Price Breaks
10
€4.62
19
€4.36
29
€4.31
39
€4.26
49
€4.20
74
€4.15
99
€3.89
199
€3.84
249
€3.79
499
€3.74
999
€3.63
SKU:
POS10-MF.EU
Budget POS10EC Maintenance Free Right Hand Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- €5.19 ex VAT
- Sale price
- €5,19
- Regular price
-
Description
|
Steel Maintenance Free Male Rod End with PTFE Liner: These rod ends consist of a Steel body with a Steel ball running in a PTFE maintenance free liner captive in a Steel ball mount. Benefits: Cost-effective replacement bearing, sliding surfaces are steel against PTFE, and maintenance free. Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover them with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Steel, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |

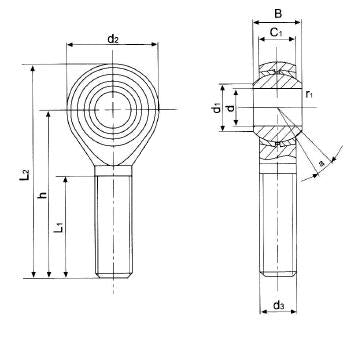

Technical
| d | = | 10mm |
| B | = | 14mm |
| r1 | = | 0.6mm |
| C1 | = | 10.5mm |
| d1 max | = | 12.9mm |
| d2 | = | 26mm |
| d3 | = | M10x1.25 |
| h | = | 48mm |
| l1 | = | 29mm |
| l2 | = | 61mm |
| Ball diameter | = | 3/4 inch |
| Dynamic load Cr | = | 10 kN |
| Static load Cor | = | 13.6 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.054 kg |
