SKU: POS16A

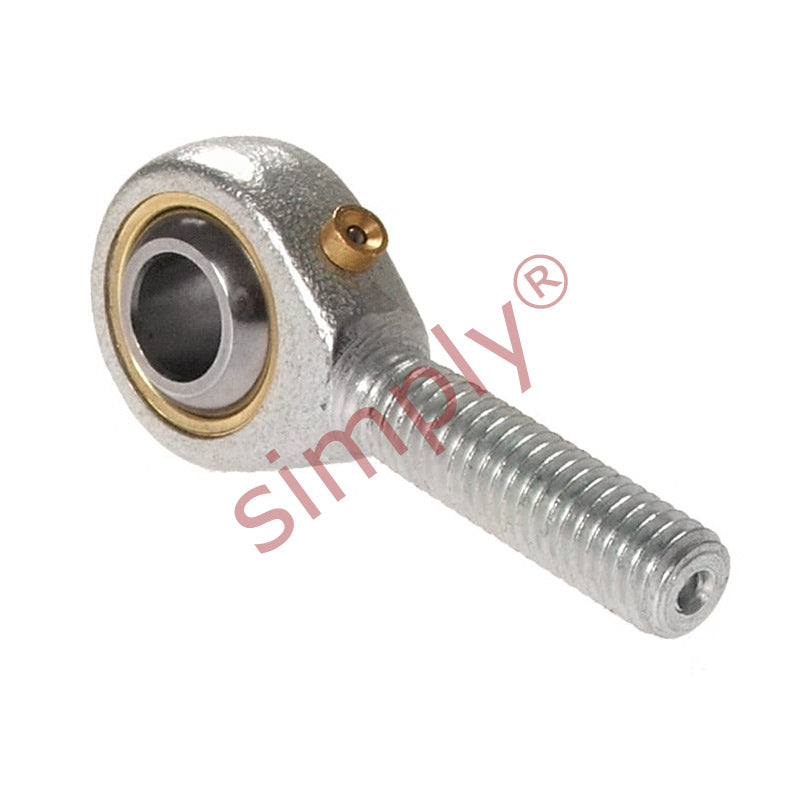

Branded POS16A Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
- Regular price
- €26.63 ex VAT
- Sale price
- €26,63
- Regular price
-
In stock
Quantity Price Breaks
10
€23.70
19
€22.37
29
€22.10
39
€21.84
49
€21.57
74
€21.30
99
€19.97
199
€19.71
249
€19.44
499
€19.17
999
€18.64
SKU:
POS16A
Branded POS16A Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
- Regular price
- €26.63 ex VAT
- Sale price
- €26,63
- Regular price
-
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 16mm |
| B | = | 21mm |
| r1 | = | 0.6mm |
| C1 | = | 15mm |
| d1 max | = | 19.3mm |
| d2 | = | 38mm |
| d3 | = | M16x2 |
| h | = | 66mm |
| l1 | = | 40mm |
| l2 | = | 85mm |
| Ball diameter | = | 1-1/8 inch |
| Dynamic load Cr | = | 21.4 kN |
| Static load Cor | = | 25.9 kN |
| Max angle a | = | 15 |
| Weight | = | 0.185 kg |
