SKU: POS18.EC

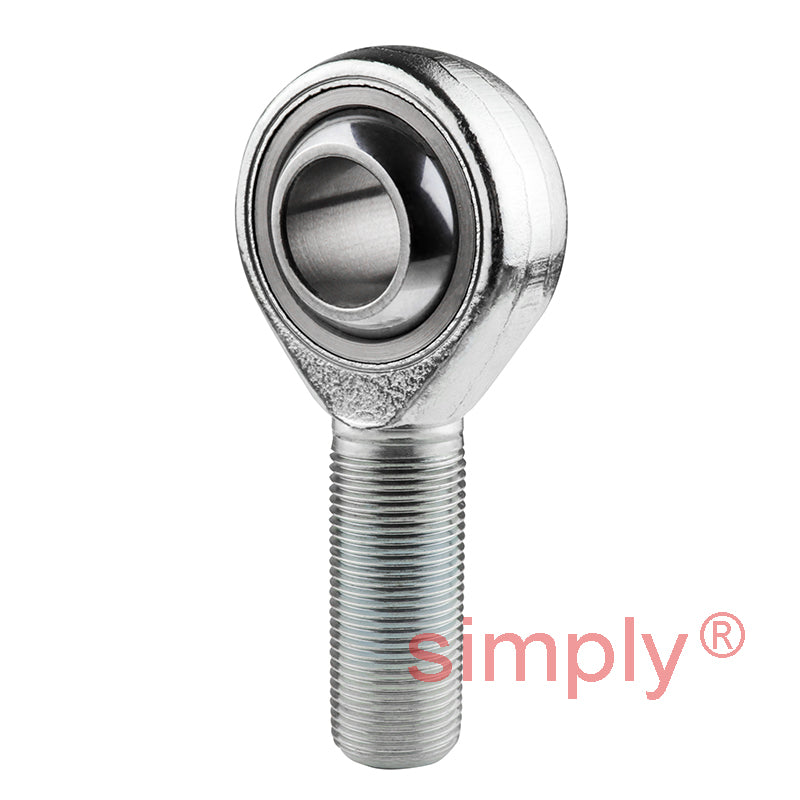

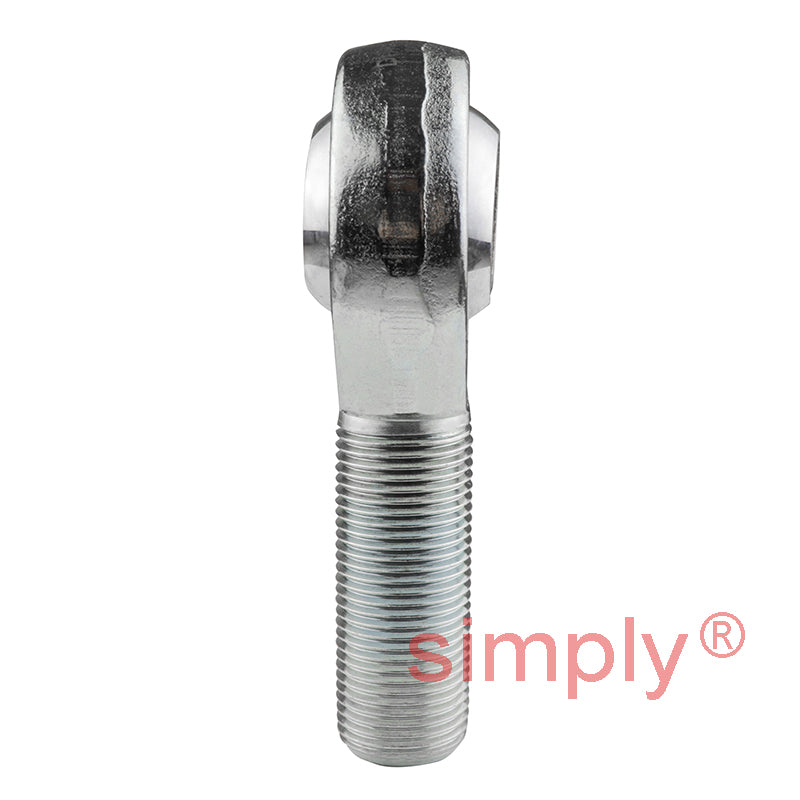

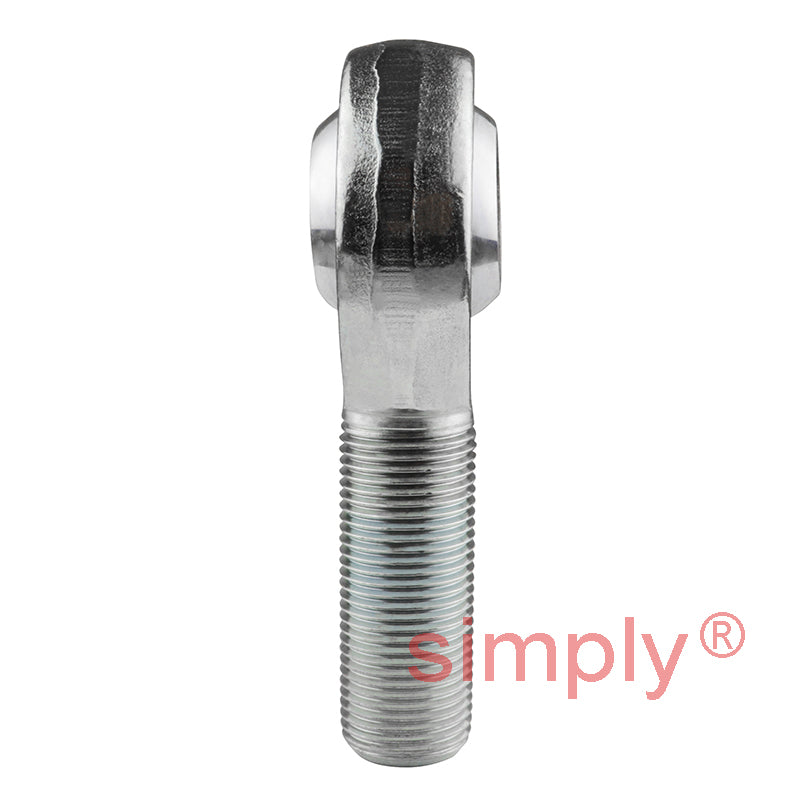

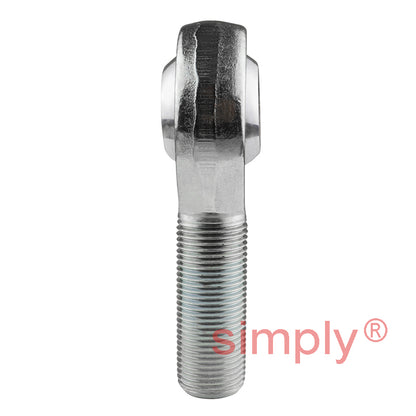

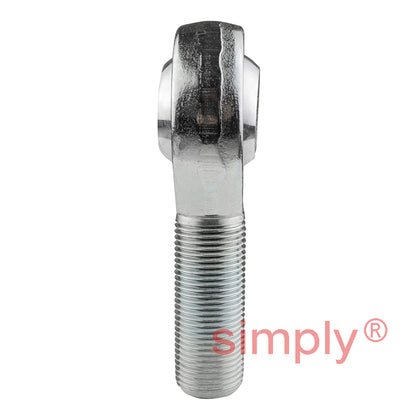

Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
- Regular price
- €9.09 ex VAT
- Sale price
- €9,09
- Regular price
-
In stock
Quantity Price Breaks
10
€8.09
19
€7.64
29
€7.54
39
€7.45
49
€7.36
74
€7.27
99
€6.82
199
€6.73
249
€6.64
499
€6.54
999
€6.36
SKU:
POS18.EC
Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
- Regular price
- €9.09 ex VAT
- Sale price
- €9,09
- Regular price
-
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 18mm |
| B | = | 23mm |
| r1 | = | 0.6mm |
| C1 | = | 16.5mm |
| d1 max | = | 21.8mm |
| d2 | = | 42mm |
| d3 | = | M18x1.5 |
| h | = | 72mm |
| l1 | = | 44mm |
| l2 | = | 93mm |
| Ball diameter | = | 1-1/4 inch |
| Dynamic load Cr | = | 26.2 kN |
| Static load Cor | = | 30.8 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.26 kg |
