SKU: POS18.EU

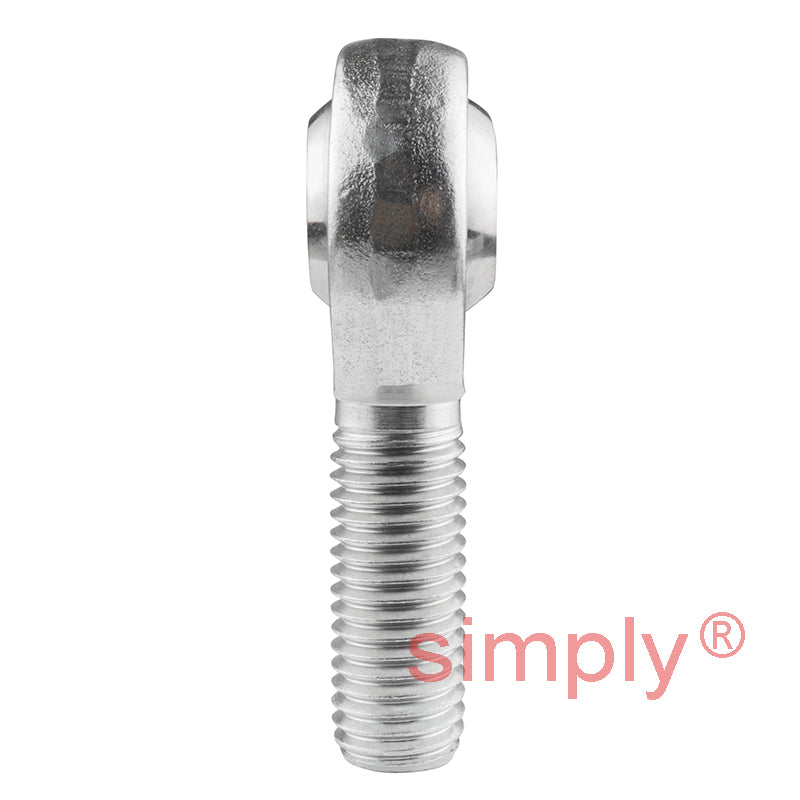

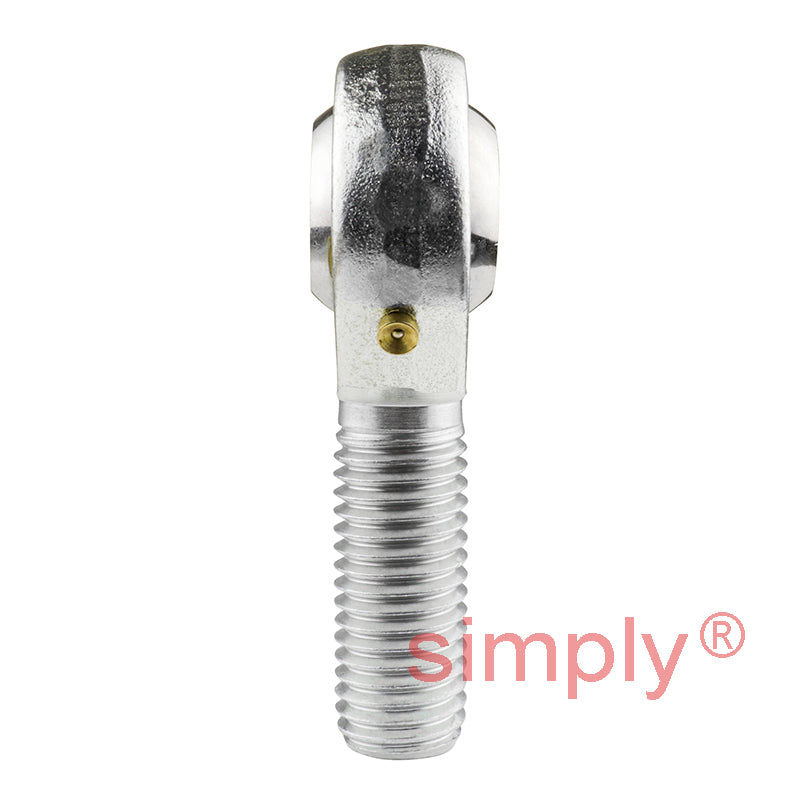

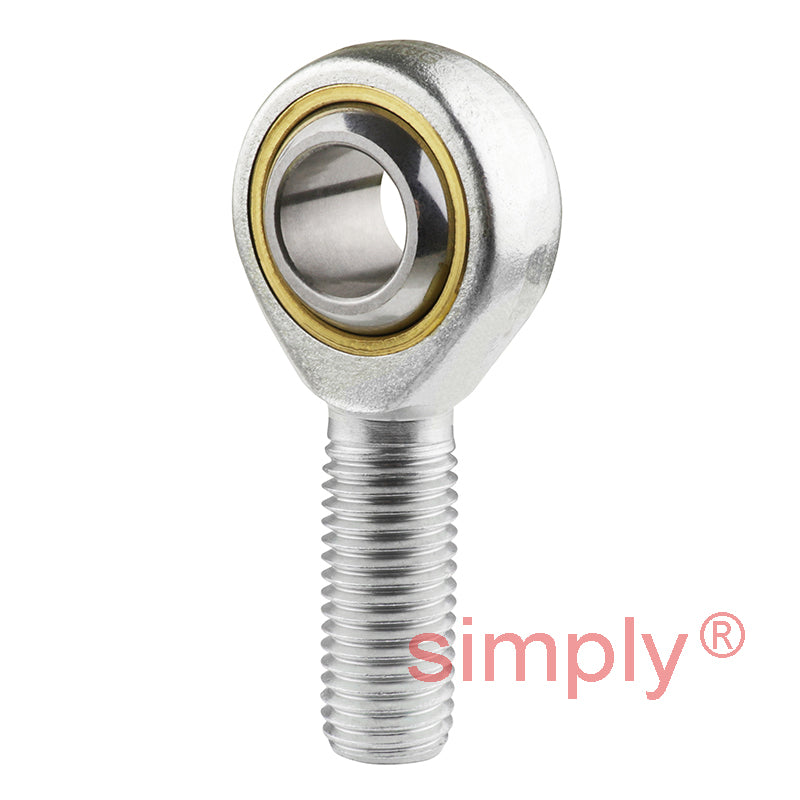

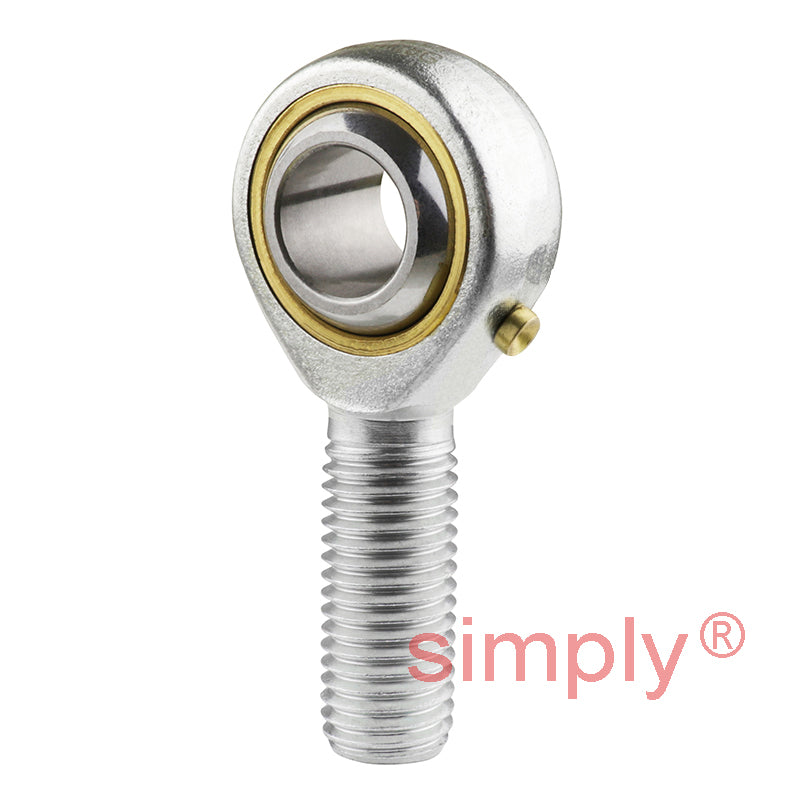

Budget POS18 Right Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x2.5 Thread
- Regular price
- €15.04 ex VAT
- Sale price
- €15,04
- Regular price
-
In stock
Quantity Price Breaks
10
€13.39
19
€12.63
29
€12.48
39
€12.33
49
€12.18
74
€12.03
99
€11.28
199
€11.13
249
€10.98
499
€10.83
999
€10.53
SKU:
POS18.EU
Budget POS18 Right Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x2.5 Thread
- Regular price
- €15.04 ex VAT
- Sale price
- €15,04
- Regular price
-
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 18mm |
| B | = | 23mm |
| r1 | = | 0.6mm |
| C1 | = | 16.5mm |
| d1 max | = | 21.8mm |
| d2 | = | 42mm |
| d3 | = | M18x2.5 |
| h | = | 72mm |
| l1 | = | 44mm |
| l2 | = | 93mm |
| Ball diameter | = | 1-1/4 inch |
| Dynamic load Cr | = | 26.2 kN |
| Static load Cor | = | 30.8 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.26 kg |
