SKU: POS22.EU
Budget POS22 Right Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
- Regular price
- €19.19 ex VAT
- Sale price
- €19,19
- Regular price
-
In stock
Quantity Price Breaks
10
€17.08
19
€16.12
29
€15.93
39
€15.74
49
€15.54
74
€15.35
99
€14.39
199
€14.20
249
€14.01
499
€13.82
999
€13.43
SKU:
POS22.EU
Budget POS22 Right Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
- Regular price
- €19.19 ex VAT
- Sale price
- €19,19
- Regular price
-
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |

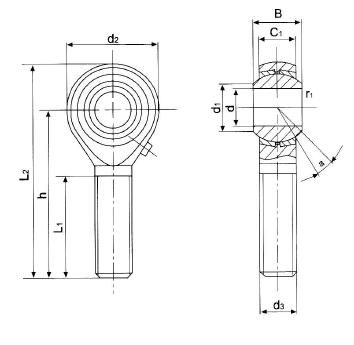

Technical
| d | = | 22mm |
| B | = | 28mm |
| r1 | = | 0.6mm |
| C1 | = | 20mm |
| d1 max | = | 25.8mm |
| d2 | = | 50mm |
| d3 | = | M22x1.5 |
| h | = | 84mm |
| l1 | = | 51mm |
| l2 | = | 109mm |
| Ball diameter | = | 1-1/2 inch |
| Dynamic load Cr | = | 38.1 kN |
| Static load Cor | = | 42.6 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.435 kg |
