SKU: POS5L.EU

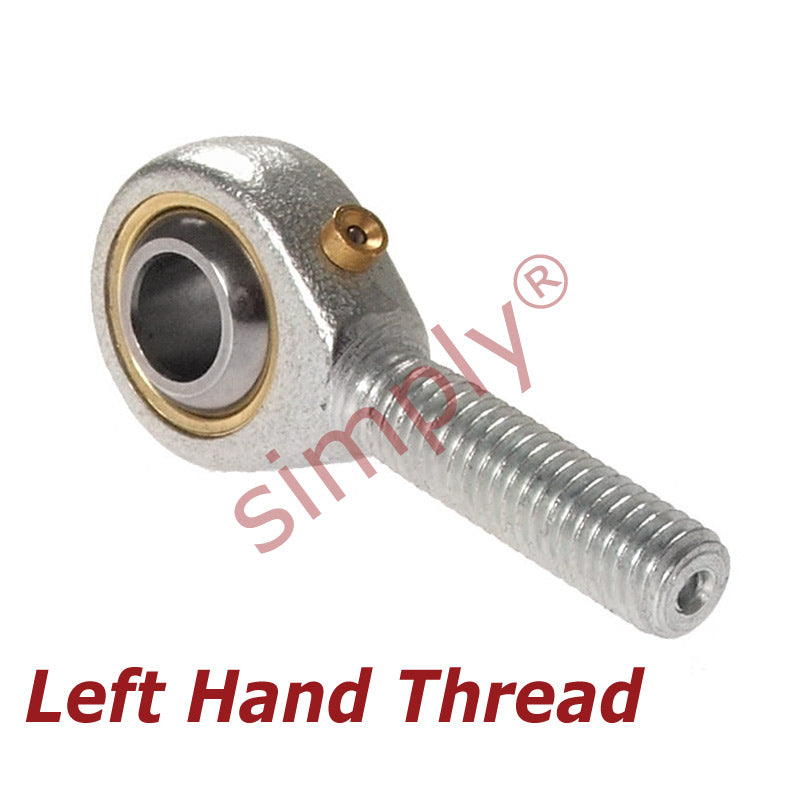

Budget POS5L Left Hand Steel / Bronze Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
- Regular price
- €4.76 ex VAT
- Sale price
- €4,76
- Regular price
-
In stock
Quantity Price Breaks
10
€4.24
19
€4.00
29
€3.95
39
€3.90
49
€3.86
74
€3.81
99
€3.57
199
€3.52
249
€3.47
499
€3.43
999
€3.33
SKU:
POS5L.EU
Budget POS5L Left Hand Steel / Bronze Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
- Regular price
- €4.76 ex VAT
- Sale price
- €4,76
- Regular price
-
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 5mm |
| B | = | 8mm |
| r1 | = | 0.3mm |
| C1 | = | 6mm |
| d1 max | = | 7.7mm |
| d2 | = | 16mm |
| d3 | = | M5x0.8 |
| h | = | 33mm |
| l1 | = | 20mm |
| l2 | = | 41mm |
| Ball diameter | = | 7/16 inch |
| Dynamic load Cr | = | 3.3 kN |
| Static load Cor | = | 3.4 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.0125 kg |
