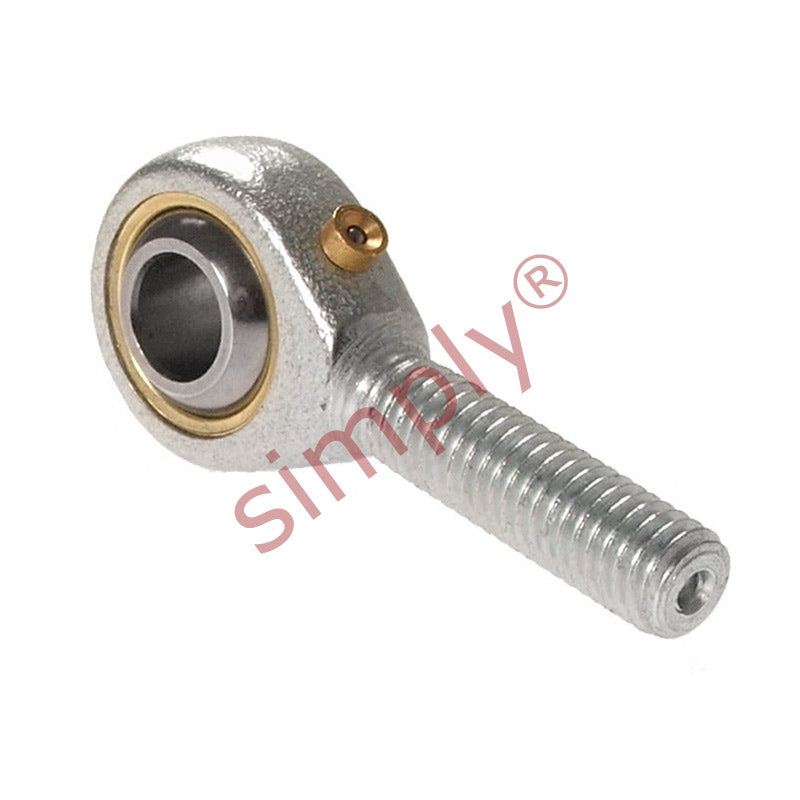

Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

SKU: POSB8

Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

€13.67 ex VAT
€13,67
ex VAT
In stock

Quantity Price Breaks

10 €12.17
19 €11.48
29 €11.35
39 €11.21
49 €11.07
74 €10.94
99 €10.25
199 €10.12
249 €9.98
499 €9.84
999 €9.57
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread
SKU: POSB8

Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

€13.67 ex VAT
€13,67
ex VAT

Description

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Technical

Bore = 1/2inch
Head Diameter = 1.312 inch
Height = 3.094 inch
Height to Bore Centre = 2.438 inch
Thread Length = 1.500 inch
Thread Size = 0.5000-20UNF
Dynamic Load = 14800N
Static Load = 36300N
