SKU: PRMF505530-EU

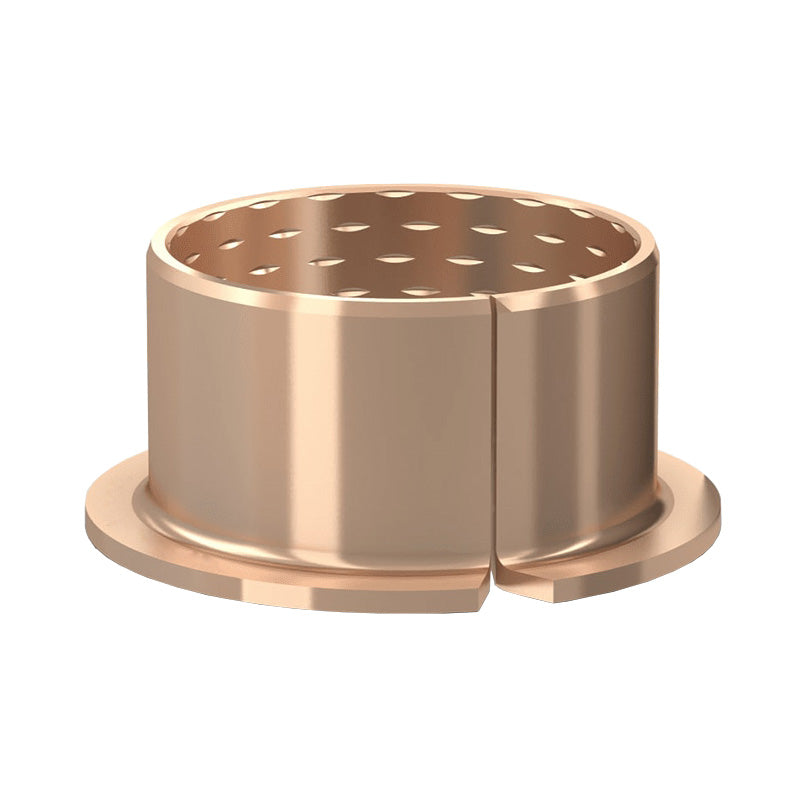

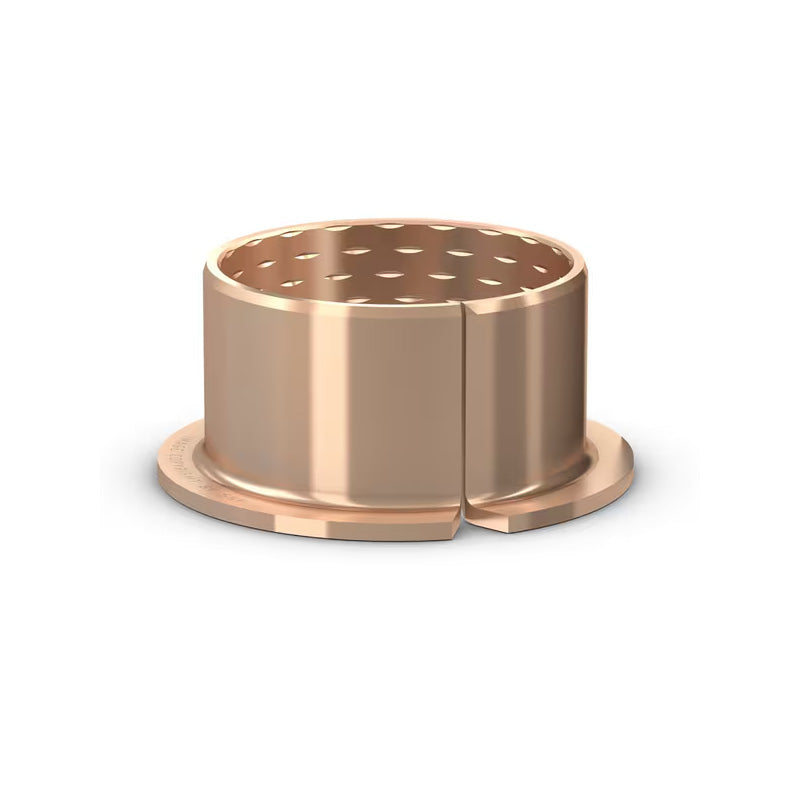

PRMF505530 Premier Budget Metric Flanged Wrapped Bronze Bush 50x55x30mm
- Regular price
- €18.00 ex VAT
- Sale price
- €18,00
- Regular price
-
Quantity Price Breaks
PRMF505530 Premier Budget Metric Flanged Wrapped Bronze Bush 50x55x30mm
- Regular price
- €18.00 ex VAT
- Sale price
- €18,00
- Regular price
-
Description
Premier Budget PRM Wrapped Bronze Bushes: Wrapped bronze bushings are particularly well suited for applications where high levels of contamination make relubrication necessary. The sliding surface of the wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease. The pockets act as reservoirs to progressively release lubricant during operation. Premier Budget wrapped bronze bushings are made entirely of bronze, CuSn8. The bushings are produced from strips which are then wrapped and calibrated.
Benefits: Insensitive to contaminated environments, resistant to shock loads and vibrations at slow speeds, good resistance to corrosive environments
Technical
| d | = | 50mm |
| D | = | 55mm |
| B | = | 30mm |
| D1 | = | 65mm |
| B1 | = | 2.5mm |
| Tolerance shaft | = | e7-f8 |
| Tolerance housing | = | H7 |
| Specific Dynamic Load Factor ( K ) | = | 40 N/mm 2 |
| Specific Static Load Factor ( K0 ) | = | 120 N/mm 2 |
| Permissable Sliding Velocity ( v ) | = | max. 1.0 m/s |
| Coefficient of Friction ( y ) | = | min. 0.08 |
| Coefficient of Friction ( y ) | = | max. 0.15 |
| Shaft Roughness (Ra) | = | min. 0.4& |
| micro | = | m |
| Shaft Roughness (Ra) | = | max. 0.8& |
| micro | = | m |
| 150-400 | = | 150-400 |
| Temperature Range | = | -40 deg C to +150 deg C |
| Weight | = | 0.8kg |
