SKU: PSMF182516A51-EU

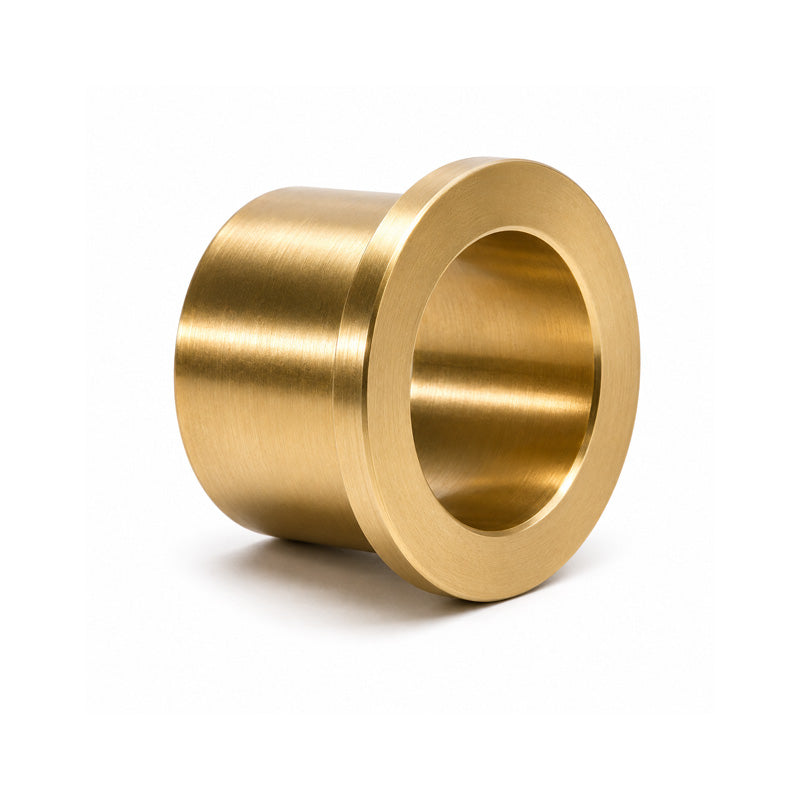

PSMF182516A51 Premier Budget Imperial Flanged Sintered Bronze Bush 0.709x0.984x0.63 inch
- Regular price
- €8.10 ex VAT
- Sale price
- €8,10
- Regular price
-
Quantity Price Breaks
PSMF182516A51 Premier Budget Imperial Flanged Sintered Bronze Bush 0.709x0.984x0.63 inch
- Regular price
- €8.10 ex VAT
- Sale price
- €8,10
- Regular price
-
Description
Premier Budget PSM/PSMF Bronze Bushing: Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. We offer a full range of both plain and flanged cylindrical bushings. Sintered Bronze bushings are most suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
Technical
| d | = | 0.709 inch |
| D | = | 0.984 inch |
| B | = | 0.63 inch |
| D1 | = | 1.26 inch |
| B1 | = | 0.12 inch |
| Tolerance shaft | = | h8 |
| Tolerance housing | = | H7 |
| Specific Dynamic Load Factor ( K ) | = | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | = | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | = | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | = | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | = | min. 0.05 |
| Coefficient of Friction ( y ) | = | max. 0.1 |
| Weight | = | 0.021 lbs |
