SKU: PWKRE72.2RS-MB
Major Brand PWKRE722RS Crowned Cam Follower with Eccentric Stud 72x28x28 M24x1.5 Thread
- Regular price
- €281.66 ex VAT
- Sale price
- €281,66
- Regular price
-
Quantity Price Breaks
Major Brand PWKRE722RS Crowned Cam Follower with Eccentric Stud 72x28x28 M24x1.5 Thread
- Regular price
- €281.66 ex VAT
- Sale price
- €281,66
- Regular price
-
Description
PWKRE Series Crowned Cam Followers: Differ from the PWKR by the addition of a shrink-fit eccentric collar fitted to the stud. Fitted with rubber seals designed for use in arduous conditions, the outer ring has three flanges to provide axial guidance and to separate the two rows of full complement needle roller bearings and permitting a thick outer ring allowing for heavy loads and shock to be supported. Resultant of the three-flange design there is a larger gap between the needle rollers permitting grease flow and cooler running operation, especially in inclined operation. |

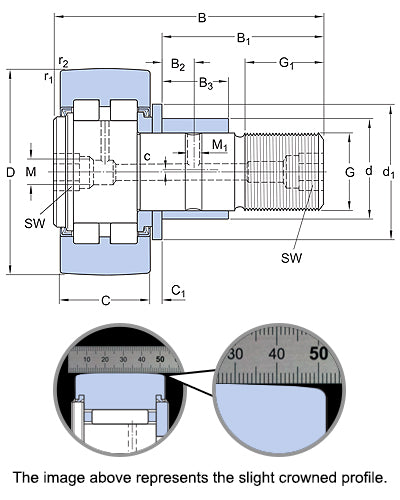

Technical
| D | = | 72mm |
| C | = | 28mm |
| d(Stud Diameter) | = | 28mm |
| B | = | 80mm |
| B1 | = | 49.5mm |
| C1 | = | 1.3mm |
| d1 | = | 44mm |
| G | = | M24x1.5 |
| G1 | = | 25mm |
| r min | = | 1.1mm |
| SW | = | 14mm |
| Eccentric stud c | = | 1mm |
| B3 | = | 22mm |
| Dynamic load | = | 39600 N |
| Static load | = | 45000 N |
| Fatigue load limit Pu | = | 5600 N |
| Radial dynamic load | = | 47500 N |
| Radial static load | = | 68000 N |
| Speed rating | = | 2200 rpm |
| Weight | = | 1050 g |
