SKU: QJ310MA-SKF

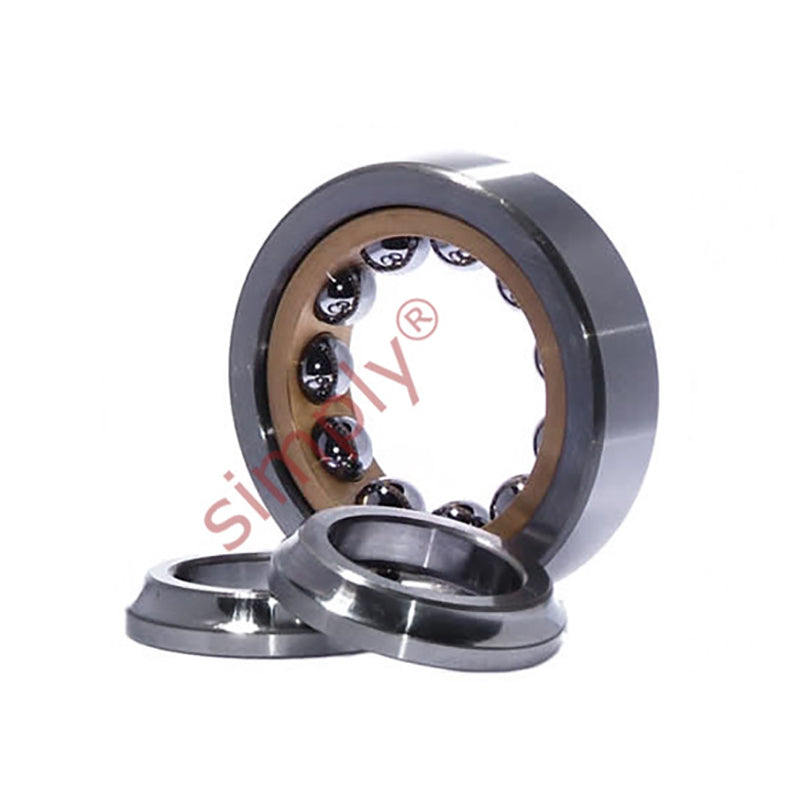

SKF QJ310MA Four Point Contact Ball Bearing with Brass Cage 50x110x27mm
- Regular price
- €185.70 ex VAT
- Sale price
- €185,70
- Regular price
-
In stock
Quantity Price Breaks
10
€165.27
19
€155.99
29
€154.13
39
€152.27
49
€150.42
74
€148.56
99
€139.28
199
€137.42
249
€135.56
499
€133.70
999
€129.99
SKU:
QJ310MA-SKF
SKF QJ310MA Four Point Contact Ball Bearing with Brass Cage 50x110x27mm
- Regular price
- €185.70 ex VAT
- Sale price
- €185,70
- Regular price
-
Description
SKF Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting.
Technical
| d | = | 50mm |
| D | = | 110mm |
| B | = | 27mm |
| Dynamic load C | = | 118 kN |
| Static load Co | = | 100 kN |
| Fatigue load limit Pu | = | 3.9 kN |
| Reference speed | = | 8000 rpm |
| Limiting speed | = | 11000 rpm |
| Weight | = | 1.35 kg |
| d1 | = | 65mm |
| D1 | = | 90mm |
| r1r2 min | = | 2mm |
| a | = | 56mm |
| da min | = | 61mm |
| Da max | = | 99mm |
| ra max | = | 2mm |
