SKU: QJ338N2MA-SKF

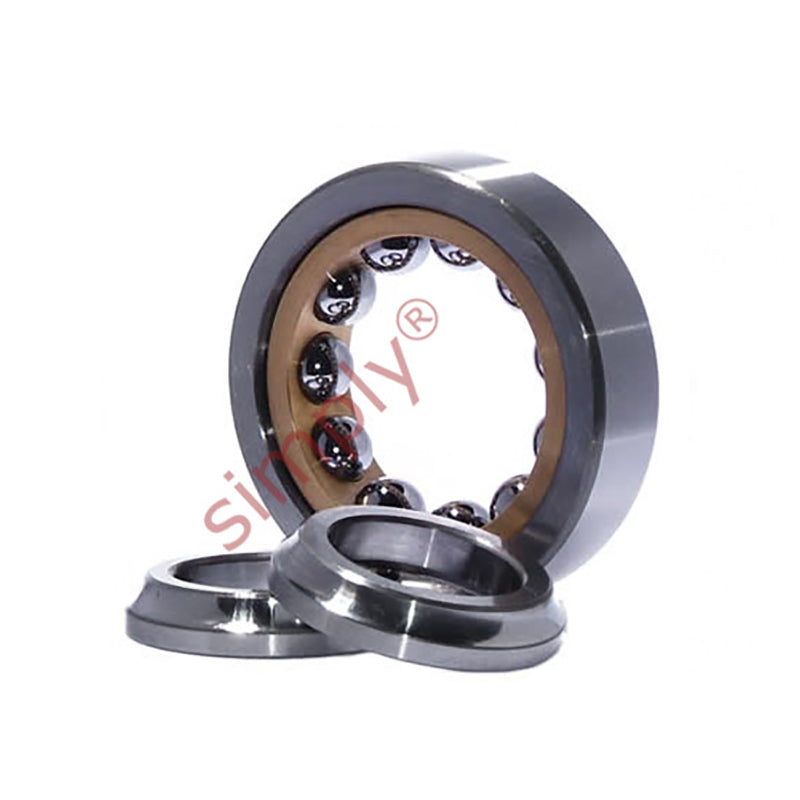

SKF QJ338N2MA Four Point Contact Ball Bearing with Locating Slots and Brass Cage 190x400x78mm
- Regular price
- €4.818.49 ex VAT
- Sale price
- €4.818,49
- Regular price
-
Not in stock
Quantity Price Breaks
10
€4.288.46
19
€4.047.53
29
€3.999.35
39
€3.951.16
49
€3.902.98
74
€3.854.79
99
€3.613.87
199
€3.565.68
249
€3.517.50
499
€3.469.31
999
€3.372.94
SKU:
QJ338N2MA-SKF
SKF QJ338N2MA Four Point Contact Ball Bearing with Locating Slots and Brass Cage 190x400x78mm
- Regular price
- €4.818.49 ex VAT
- Sale price
- €4.818,49
- Regular price
-
Description
SKF Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting.
Technical
| d | = | 190mm |
| D | = | 400mm |
| B | = | 78mm |
| Dynamic load C | = | 702 kN |
| Static load Co | = | 1160 kN |
| Fatigue load limit Pu | = | 28.5 kN |
| Reference speed | = | 1700 rpm |
| Limiting speed | = | 2800 rpm |
| Weight | = | 49 kg |
| d1 | = | 263mm |
| D1 | = | 326mm |
| r1r2 min | = | 5mm |
| a | = | 207mm |
| b | = | 10.5mm |
| h | = | 12.7mm |
| ro | = | 2mm |
| da min | = | 210mm |
| Da max | = | 380mm |
| ra max | = | 4mm |
