SKU: QJM1-1/8-EU

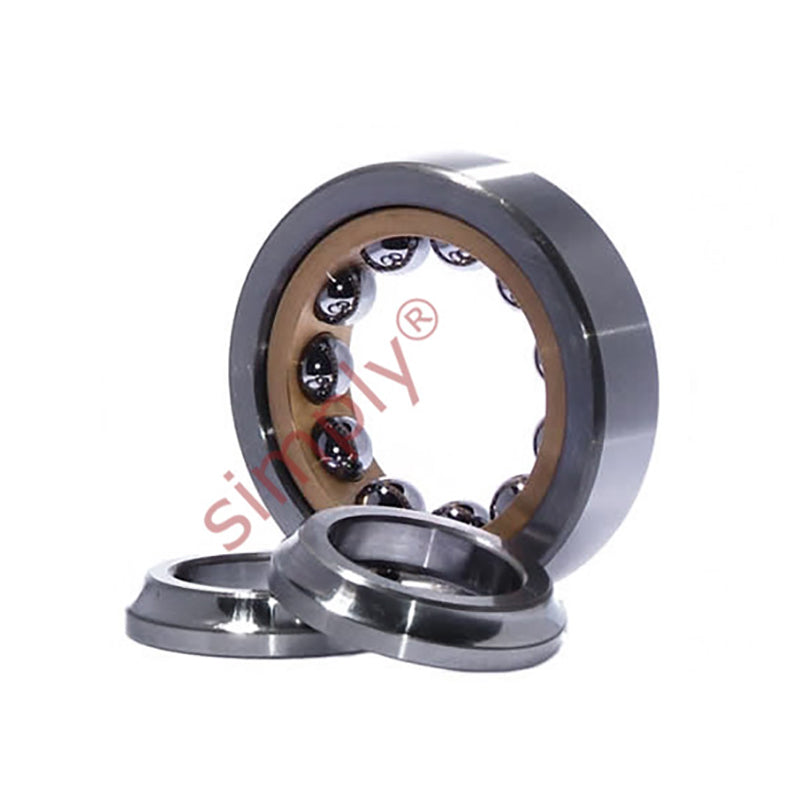

Premier Budget Brass Caged Imperial QJM1-1/8 Four Point Contact Ball Bearing 1-1/8x2-3/16x13/16 inch
- Regular price
- €182.57 ex VAT
- Sale price
- €182,57
- Regular price
-
Not in stock
Quantity Price Breaks
10
€162.49
19
€153.36
29
€151.53
39
€149.71
49
€147.88
74
€146.06
99
€136.93
199
€135.10
249
€133.28
499
€131.45
999
€127.80
SKU:
QJM1-1/8-EU
Premier Budget Brass Caged Imperial QJM1-1/8 Four Point Contact Ball Bearing 1-1/8x2-3/16x13/16 inch
- Regular price
- €182.57 ex VAT
- Sale price
- €182,57
- Regular price
-
Description
Imperial Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting, brass caged.
Technical
| Inside Diameter d | = | 1-1/8 inch |
| Outside Diameter D | = | 2-3/16 inch |
| = | Width B | |
| 13/16 inch | = | Dynamic load C |
| 33900N | = | Static load Co |
| 19600N | = | Weight |
| 0.445 kg | = | N/A |
