SKU: QRFF-12-HQ12-MB

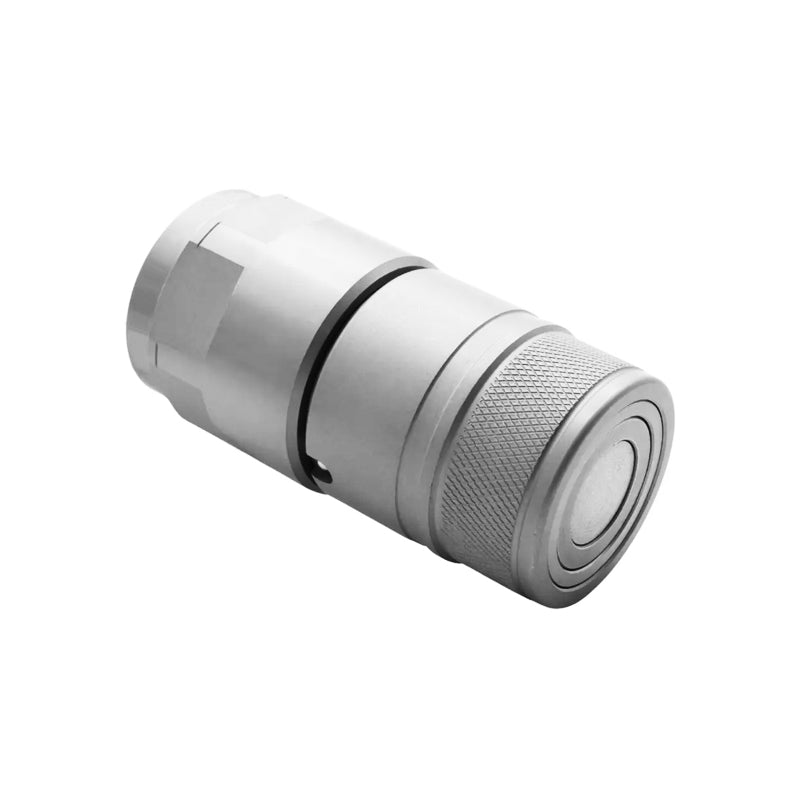

3/4 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
- Regular price
- €39.18 ex VAT
- Sale price
- €39,18
- Regular price
-
Quantity Price Breaks
3/4 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
- Regular price
- €39.18 ex VAT
- Sale price
- €39,18
- Regular price
-
Description
BSP Female Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.
Technical

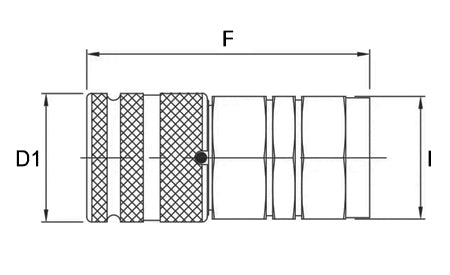

| Thread Size | = | 3/4 inch |
| Body Size (D1) | = | 38mm |
| Total Length (F) | = | 83.8mm |
| Nut Size (I) | = | 36mm |
| Maximum Working Pressure | = | 350 bar |
| Coupled Burst Pressure | = | 1400 bar |
| Female Burst Pressure | = | 1000 bar |
| Rated Flow | = | 45 lpm |
| Material | = | Zinc-Nickel Coated Steel |
| Weight | = | 0.493 kg |
