SKU: QRMF-08-HQ10-MB

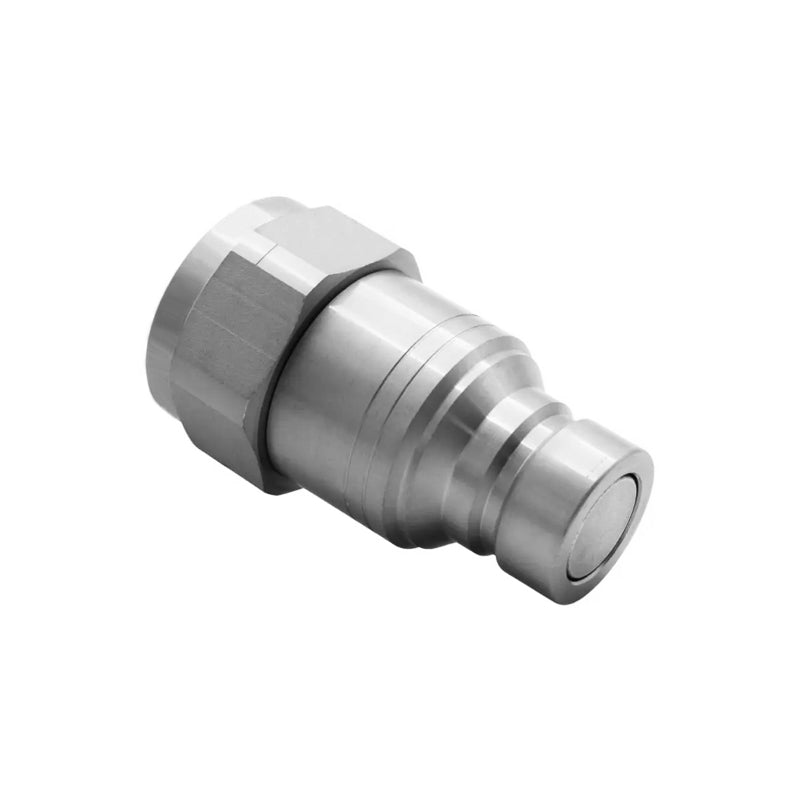

1/2 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days
- Regular price
- €14.88 ex VAT
- Sale price
- €14,88
- Regular price
-
Quantity Price Breaks
1/2 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days
- Regular price
- €14.88 ex VAT
- Sale price
- €14,88
- Regular price
-
Description
BSP Male Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.
Technical

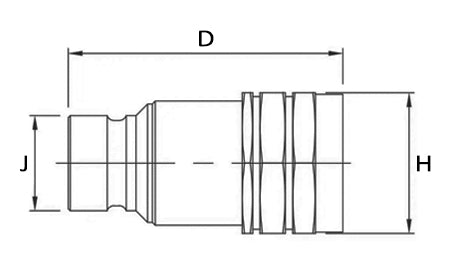

| Thread Size | = | 1/2 inch |
| Total Length (D) | = | 63mm |
| Nut Size (H) | = | 27mm |
| Body Size (J) | = | 19.7mm |
| Maximum Working Pressure | = | 350 bar |
| Coupled Burst Pressure | = | 1200 bar |
| Male Burst Pressure | = | 1200 bar |
| Rated Flow | = | 23 lpm |
| Material | = | Zinc-Nickel Coated Steel |
| Weight | = | 0.141 kg |
