SKU: RAPR3-320-AK-RSB

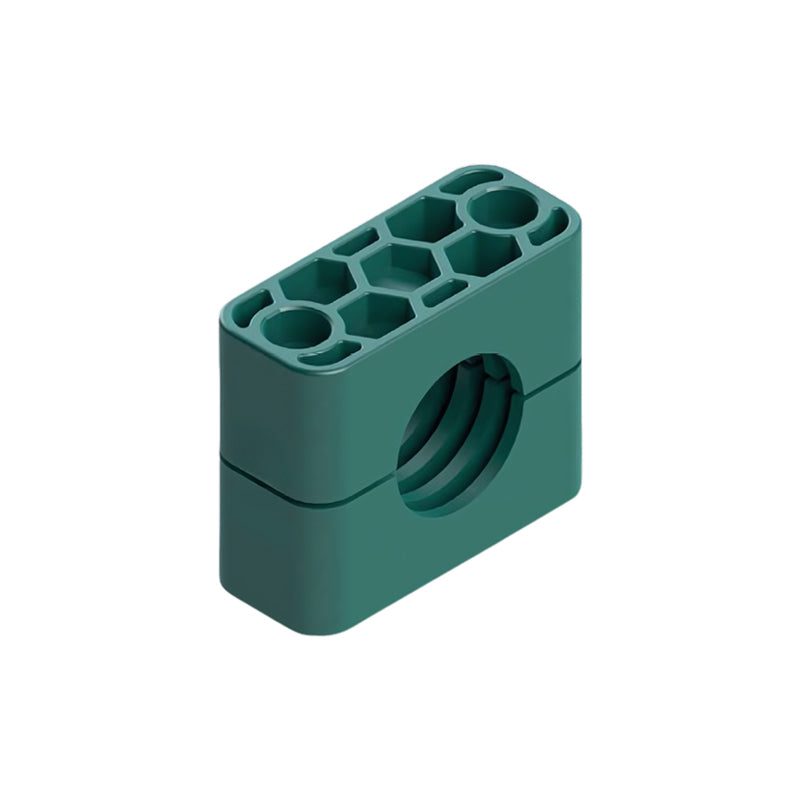

RSB Complete Hose Clamp Suitable for Hoses with 20mm Diameter - Allow 2-3 Days
- Regular price
- €7.25 ex VAT
- Sale price
- €7,25
- Regular price
-
Not in stock
Quantity Price Breaks
3
€6.45
5
€6.09
9
€6.02
19
€5.95
49
€5.87
74
€5.80
99
€5.44
199
€5.37
249
€5.29
499
€5.22
999
€5.08
SKU:
RAPR3-320-AK-RSB
RSB Complete Hose Clamp Suitable for Hoses with 20mm Diameter - Allow 2-3 Days
- Regular price
- €7.25 ex VAT
- Sale price
- €7,25
- Regular price
-
Description
RSB Complete Hose Clamp: These clamps are a versatile and durable solution, designed for securing hoses with diameters ranging from 8mm to 25mm. Suitable for a wide range of industrial applications, including hydraulic systems, these clamps meet DIN 3015 standards for tube clamping. Offering reliable performance and easy installation, they ensure a secure and leak-free connection, making them ideal for high-pressure environments where safety and stability are essential.
Benefits: Versatile fit, easy installation, reliable performance
Technical
| Inside Diameter (Hose Size) | = | 20mm |
| Overall Width | = | 30mm |
| Weld Plate Diameter (A) | = | 50mm |
| Body Diameter (B) | = | 49mm |
| Cover Plate (C) | = | 48mm |
| Weld Plate Thickness (D) | = | 3mm |
| Base to Bore Height (E) | = | 20.5mm |
| Height Without Screws (F) | = | 41mm |
| Overall Height (G) | = | 45mm |
| Bolt Hole Centres (H) | = | 33mm |
| Body Code | = | RAPR-320 |
| Body Material | = | Polypropylene |
| Weld Plate Code | = | APK-A3 |
| Weld Plate Material | = | Mild Steel |
| = | Cover Plate Code | |
| DP-A3 | = | Cover Plate Material |
| Mild Steel | = | |
| Bolt Kit | = | SSL-A3 |
| Weight | = | 1.12 kg |
