SKU: RASEY40-XL-N-INA

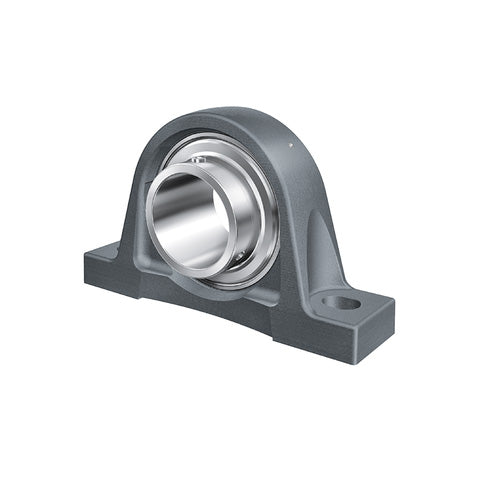

INA RASEY40XLN Cast Iron Plummer Block Housing with Grub Screw Insert 40mm Bore
- Regular price
- €64.06 ex VAT
- Sale price
- €64,06
- Regular price
-
In stock
Quantity Price Breaks
10+
€57.01
19+
€53.81
29+
€53.17
39+
€52.53
49+
€51.89
74+
€51.25
99+
€48.05
199+
€47.40
249+
€46.76
499+
€46.12
999+
€44.84
SKU:
RASEY40-XL-N-INA
INA RASEY40XLN Cast Iron Plummer Block Housing with Grub Screw Insert 40mm Bore
- Regular price
- €64.06 ex VAT
- Sale price
- €64,06
- Regular price
-
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
